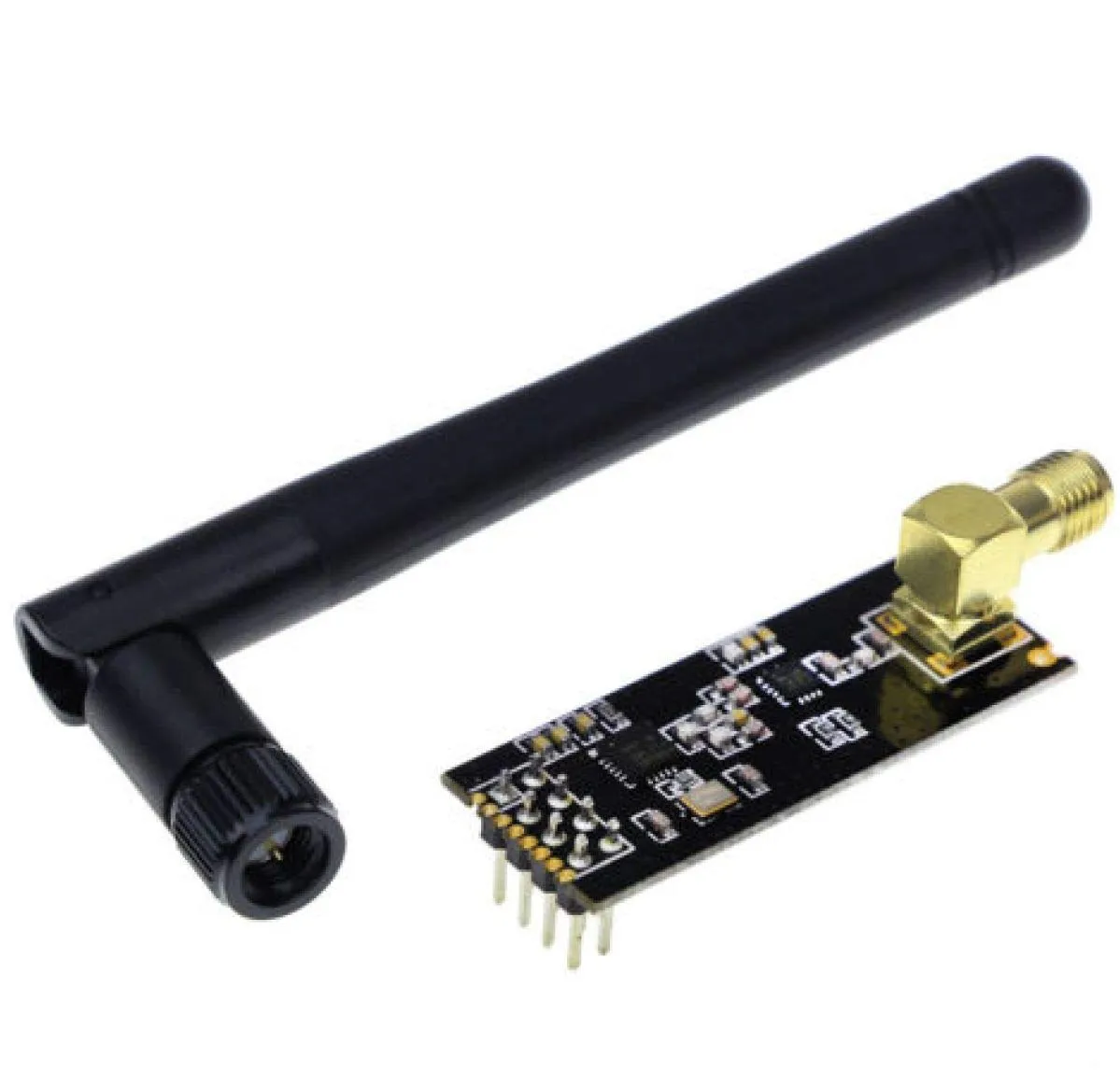

NRF24L01+PA+LNA Wireless Module Long Distance With Antenna

NRF24L01+PA+LNA Wireless Module Long Distance With Antenna

NRF24L01 + PA + LNA Module for ultra-long-distance data transmission, specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free band that can be used in point-to-point applications or be composed of a star network.
Digital transmission chip NRF24L01+ with the Division of Professional Design full two-way RF power amplifier high power PA and LNA chip, RF switches and band pass filters, makes effective communication distance greatly expanded.



Specifications:

Voltage: 3-3.6V
Max output power: +20 dBm
Working current in transmit mode: 115mA
Working current in receiver mode: 45mA
Current in mode: 4.2uA
Operating temperature: -20-70 degree
Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
PA growth: 20dB
LAN growth: 10dB
LAN noise figure: 2.6dB
Antenna growth: 2dBI
2M rate: 520m

Theorotical Range: Upto 1100 Meters



NOTE: the range of the module is subject to environmental conditions of the particular place. actual range may vary from theorotical.

Package includes:

1 x Long Distance NRF24L01+PA+LNA Wireless Module With Antenna
