JHEMCU ExpressLRS RX24T 2.4G ELRS Receiver for FPV Drone

Key Features

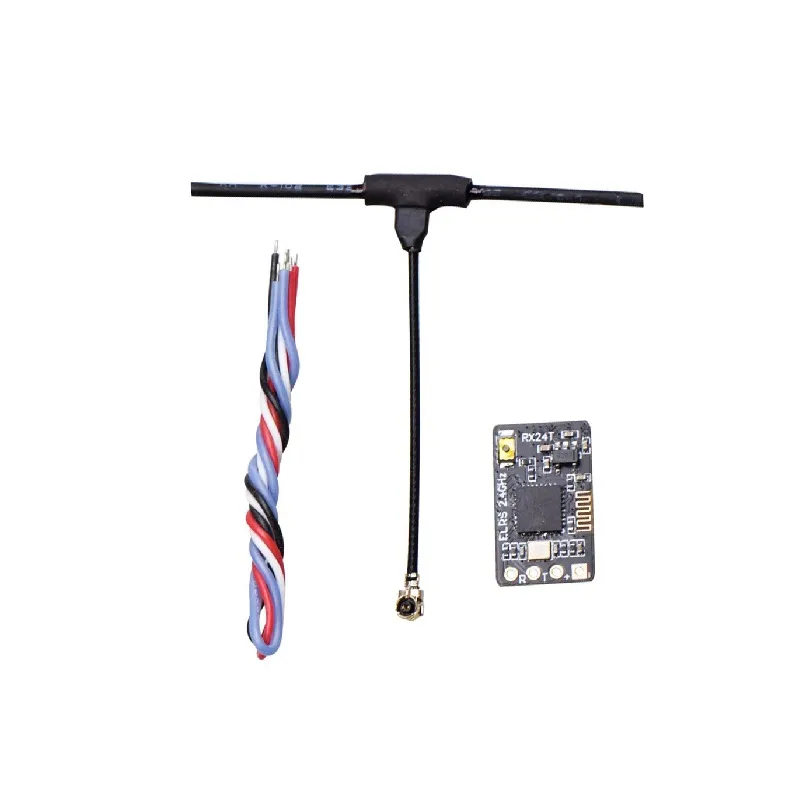

• Omnidirectional T-Shaped Antenna
  Built with a half-wave dipole T-antenna that delivers stable 360° signal reception and improved connectivity.

• Effortless Binding Process
  Quick pairing supported by an easy code-matching system with a double-flash LED indicator for a smooth setup experience.

• Wide Frequency Band
  Supports a working frequency of 2400 MHz – 2500 MHz, ensuring long-distance communication and reliable link performance for FPV drones.

• Ultra-Compact & Featherweight

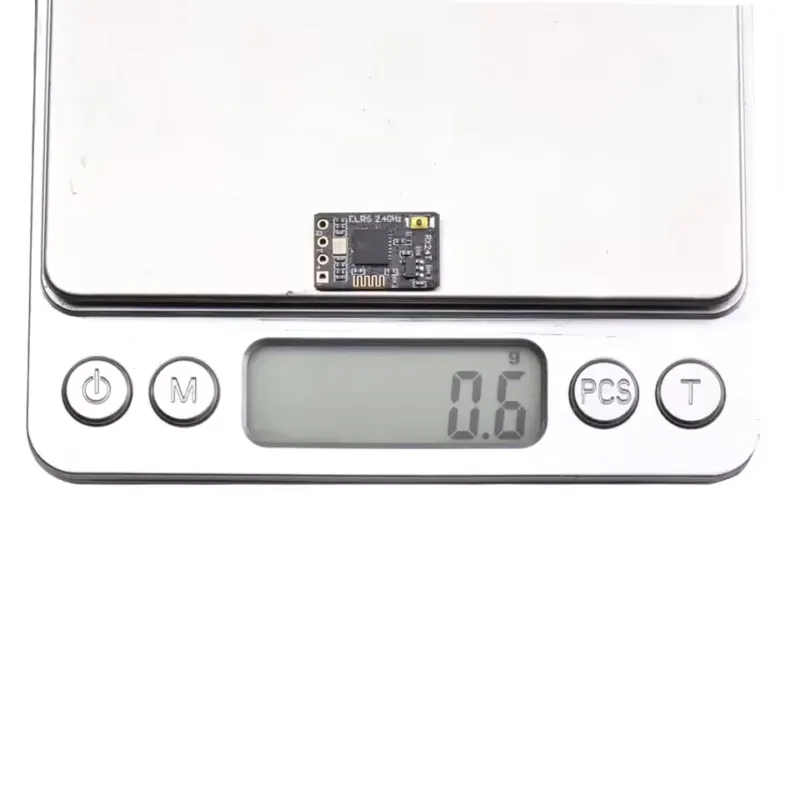

  Weighs only 0.6 g and measures 11 × 18 × 3 mm, making it perfect for micro-quads and lightweight drone builds.

• ELRS / High Refresh Performance
  Designed for DIY ELRS / DELRS systems with a 500 Hz maximum refresh rate, offering fast signal response and precise control for FPV racing.

Binding / Linking Procedure

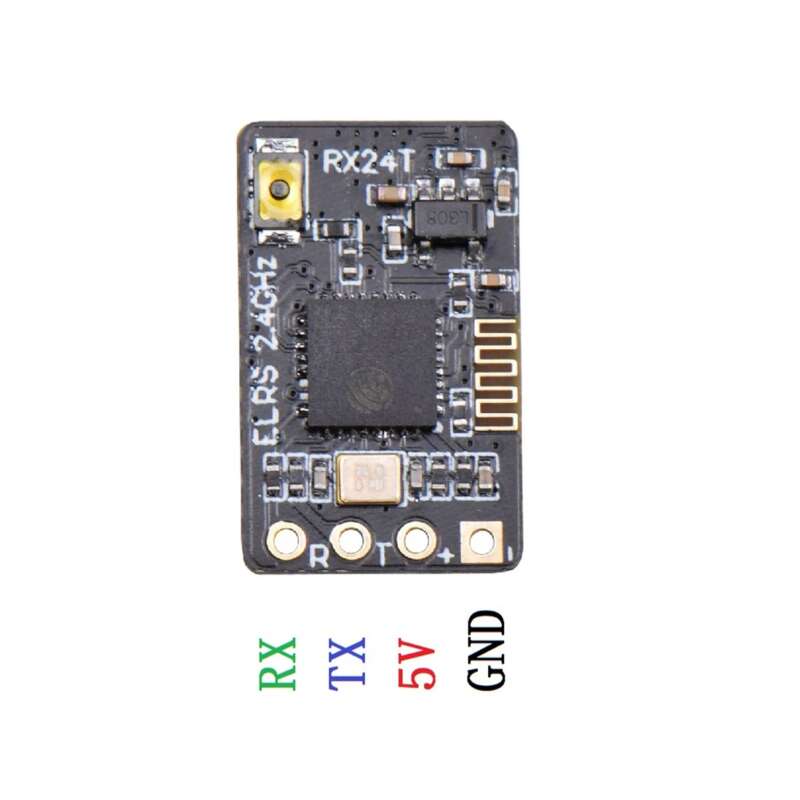

1. Connect the receiver to the flight controller, then power the flight controller via USB.
   As soon as the receiver LED turns off, unplug the USB immediately.
   Repeat this process two times.
   On the third USB connection, the LED will flash twice repeatedly, indicating the receiver has entered binding mode.

2. Ensure the 2.4G ELRS transmitter module and the radio controller are properly set up.
   Copy the ELRS.LUA script to the SD card in your radio → SD Card / Scripts / Tools, then run ELRS.LUA to complete the binding.

3. Once the bind is successful, the receiver LED will remain solid, and telemetry will be available.

LED Indicator Meaning
