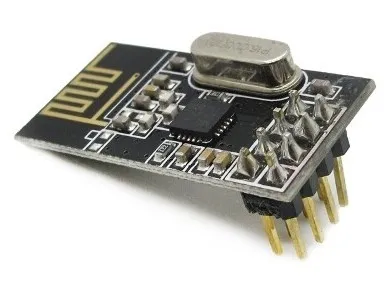

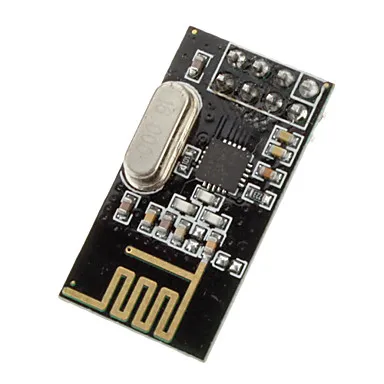

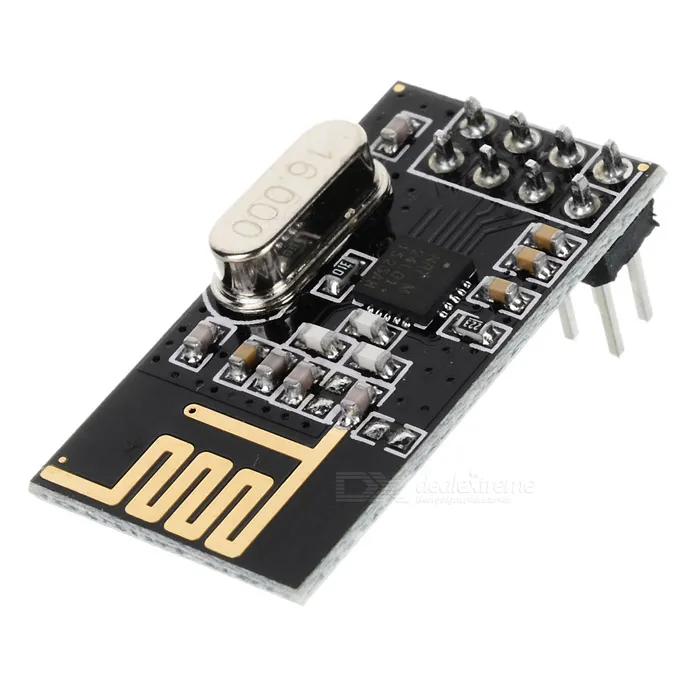

NRF24L01 2.4GHz Antenna Wireless Transceiver Module

The nRF24L01 is a highly integrated, ultra-low power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific, and Medical) band. With peak RX/TX currents lower than 14mA, a sub ?A power down mode, advanced power management, and a 1.9 to 3.6V supply range, the nRF24L01 provides a true ULP solution enabling months to years of battery life when running on coin cells or AA/AAA batteries.

These RF modules are very popular among the Arduino tinkerers. The nRF24L01 is used on a wide variety of applications that require wireless control. They are transceivers which this means that each module can transmit and receive data.

M177 NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module can be used with Arduino, Mbed, ARM or any other MCU.

The module can be easily powered by mounting it over 3.3V Adapter Board for 24L01 Wireless Module



Description:

The real GFSK monolithic transceiver chip
Built-in hardware and link layer
Automatic response and automatic retransmission function
Address and CRC check function
Channel switching time is very short, can be used for frequency hopping
Fully compatible with nRF24XX series
The global open ISM frequency band, the maximum 0dbm transmitted power, free license to use.

Specification:

I/O can accept 5v level of input
Low working voltage: 1.9 ~ 3.6 V
Wireless rate: 1 or 2 MBPS
SPI interface rate: 0 ~ 8MBPS
Transmit power +0dB
125 optional channels work
Transmission distance up to 100 meters in outdoor open occasions

Package includes:

1 x NRF24L01+ 2.4GHz antenna wireless module
