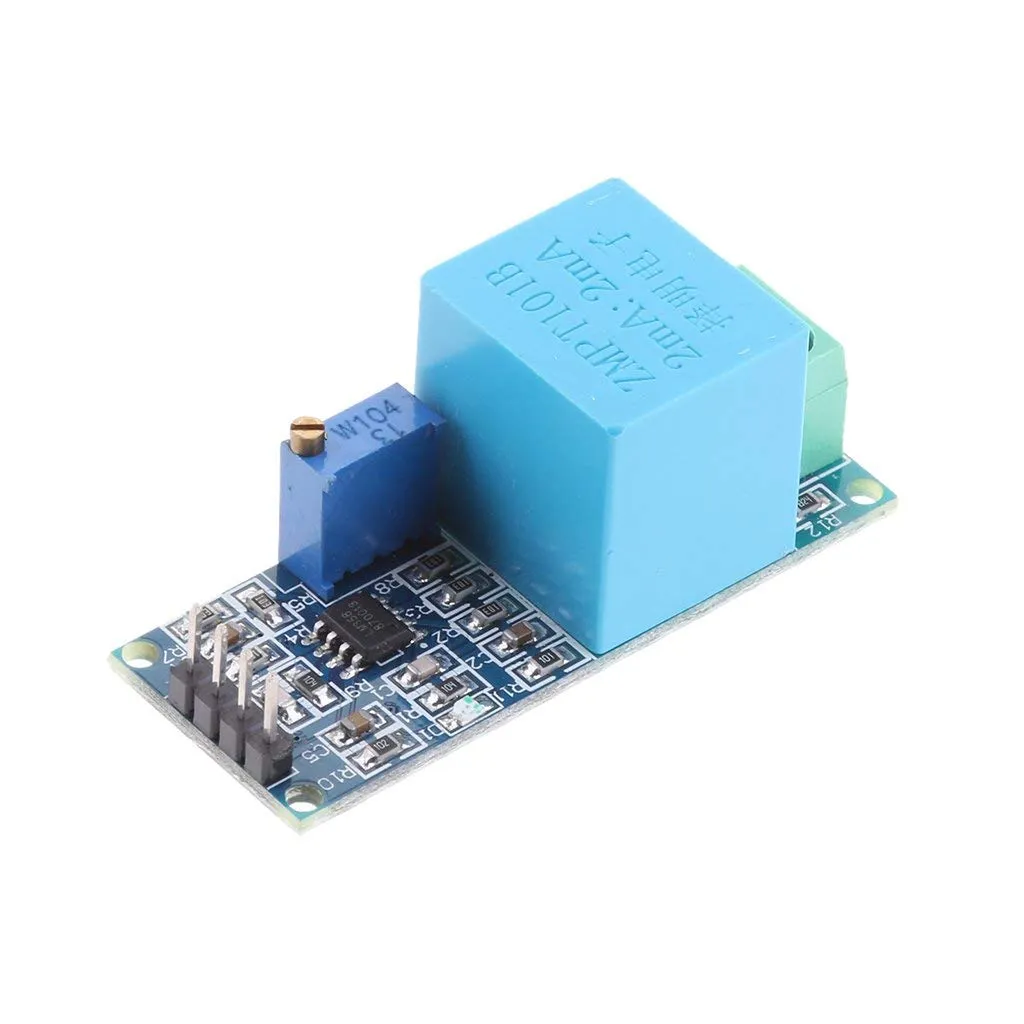

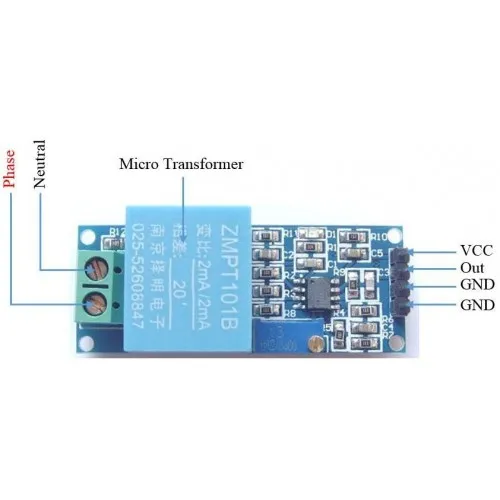

ZMPT101B AC Voltage Sensor Module Single Phase
Single-phase AC voltage sensor active output voltage mutual inductance module equipped with ZMPT101B series of high-precision voltage transformer and high-precision op amp current, easy to 250v within the AC power signal acquisition.
Product Overview & Technical Specifications
ZMPT101B AC Voltage Sensor Module Single Phase
Single-phase AC voltage sensor active output voltage mutual inductance module equipped with ZMPT101B series of high-precision voltage transformer and high-precision op amp current, easy to 250v within the AC power signal acquisition.
Specifications:
Supply voltage: 5-30v
Product model: ZMPT101B
Rated input current: 2mA
Rated output current: 2mA
Change ratio: 1000:1000
Phase difference: ?20'
Linear range: 0~1000V 0~10mA
Linearity: ?0.2%
Allowable error: -0.3?f?0.2%
Isolation withstand voltage: 4000V
Uses: accurate measurement of voltage and power
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +60 degrees
Shell material: ABS
Package Includes:
1 x ZMPT101B 2MA Voltage Transformer Module
