5v relay module

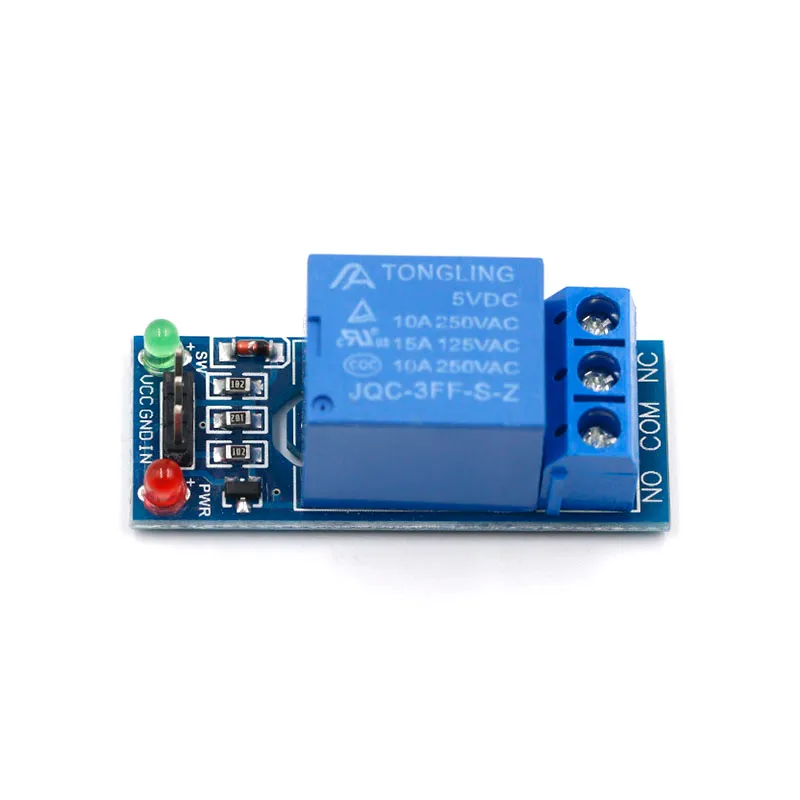

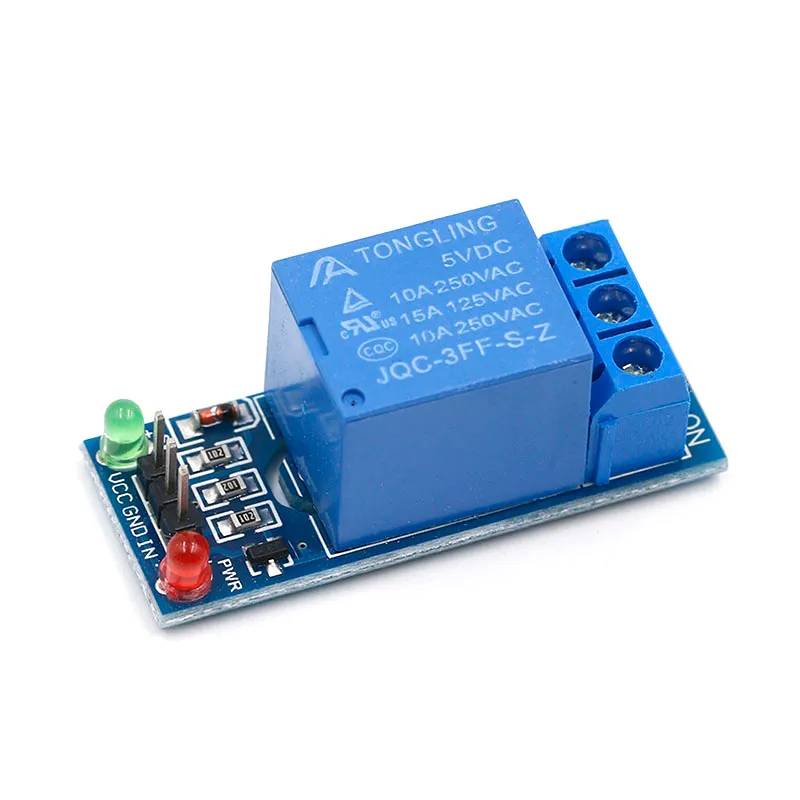

5V Relay Module 1 Channel Relay for Arduino

No reviews yet

5 Volts 1-Channel relay module is an interface board that is compatible with Arduino, AVR, PIC, ARM, etc. This module can work in a high current like AC250V 10A or DC30V 10A. It controls larger loads and devices like DC motors, AC motors, and other AC and DC devices with the digital outputs from controllers and processors. It is a 1-channel relay module, so it can control any 1 device. ?Each relay or channel of 1 channel relay module needs 15-20mA driver current and 5 Volts supply.

SKU:S176
Category:Relay Modules
Availability: IN STOCK
Lead Time:1-3 Days Dispatch
₹69₹120-43%
Quantity:
1
1-3 Days DispatchPan India Delivery
100% AuthenticGenuine Part
GST InvoiceTax Credit Claim
Tech SupportDrone Experts
Tags:#5v relay#relay module

Product Overview & Technical Specifications

5V Relay module 1-Channel is an interface board that is compatible with Arduino, AVR, PIC, ARM, etc. This module can work in a high current like AC250V 10A or DC30V 10A. It controls larger loads and devices like DC motors, AC motors, and other AC and DC devices with the digital outputs from controllers and processors. It is a 1-channel relay module, so it can control any 1 device. ?Each relay or channel of 1 channel relay module needs 15-20mA driver current and 5 Volts supply.



Features:

With isolation groove in control area and load area.
With power and relay action indication, bright when connect and go off when disconnects.
When there is a signal in signal input, public side and common side will breakover.
It can be not only used as a microcontroller development board module, but also as a home appliance control.
It can not only control the DC or AC signal, but the 220V AC load.
With a? permanent open and close vents contact.
It is convenient to connect with blue KF301 terminal access control cable.

Specification:

5V Relay module

VCC: Power interface ,5V

GND: Ground
IN: Control interface .Drive Current at least 4mA
COM: Control circuit ground ,Connect to GND
Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62''

Weight: approx. 12g

Note:??
1. High level flip-flops shows that there are trigger mode of the voltage between the signal input terminal and the ground; That is to say it is a way of short circuit trigger between signal input and VCC positive pole.
2. Low level flip-flops shows that there are voltage for OV trigger mode? between the signal input terminal and the ground. In a word, it is a way of short circuit trigger between signal input and GND negative pole.
3. Please allow 1-3mm differs due to manual measurement.
4. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understand

Customer Reviews (0)

No reviews yet for this product

Have you used 5V Relay Module 1 Channel Relay for Arduino? Be the first to share your experience with fellow drone builders.

Related Drone Components

View All

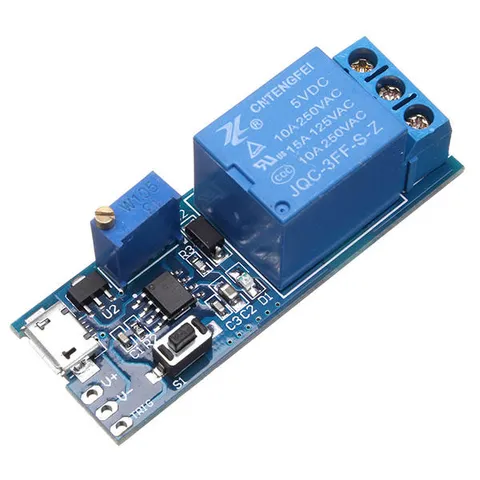

Relay Module with Timer Delay Control Micro USB Power 5V-30V Switch
