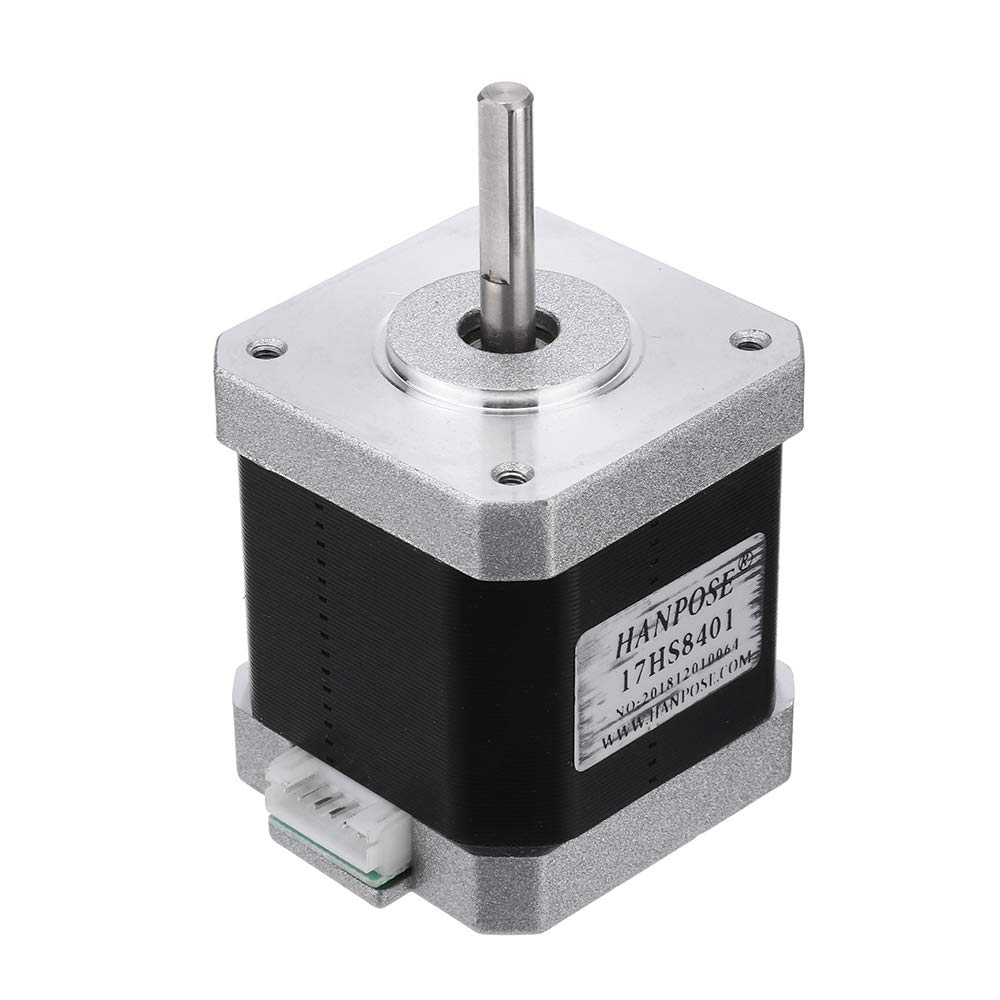

NEMA 17 Stepper Motor 4.2kgcm 17HS8401 - With Detachable Cable

Stepper motor is a motor that moves in discrete steps, one step at a time. It is generally used in a variety of applications where precise position control is desirable such as 3D printer, laser cutter and pick & place machine. This NEMA 17HS8401 bipolar stepper motor has a 1.8? step angle (200 steps/revolution) with 40N.cm (56oz.in) holding torque.

Electrical Specification:

• Motor Type: Bipolar Stepper
• Step Angle: 1.8 deg.
• Holding Torque: 40N.cm (56oz.in)
• Rated Current/phase: 1.7A
• Phase Resistance: 1.5Ohm?10%
• Insulation Resistance: 100M?? Min, 500VDC
• Insulation Strength: 500VAC for one minute

Physical Specification:

• Frame Size: 42 x 42mm (1.7 inch x 1.7 inch)
• Body Length: 40mm
• Shaft Diameter: 5mm
• Number of Wire Leads: 4
• Wire Length: 400mm
• Weight: 280g
• Temperature rise: 80deg Max(rated current, 2 phase on)

Package Includes:

1 x? NEMA 17 17HS8401 Stepper Motor
