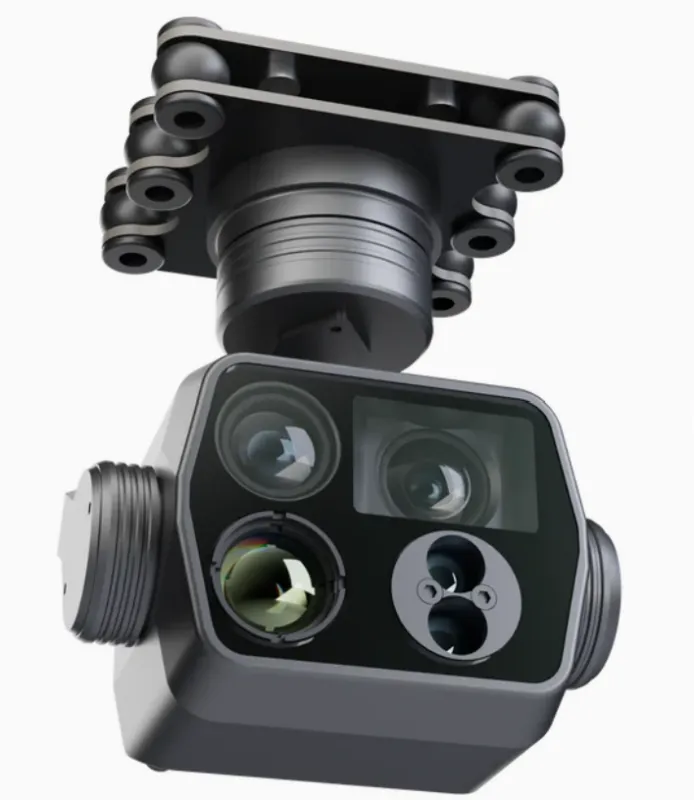

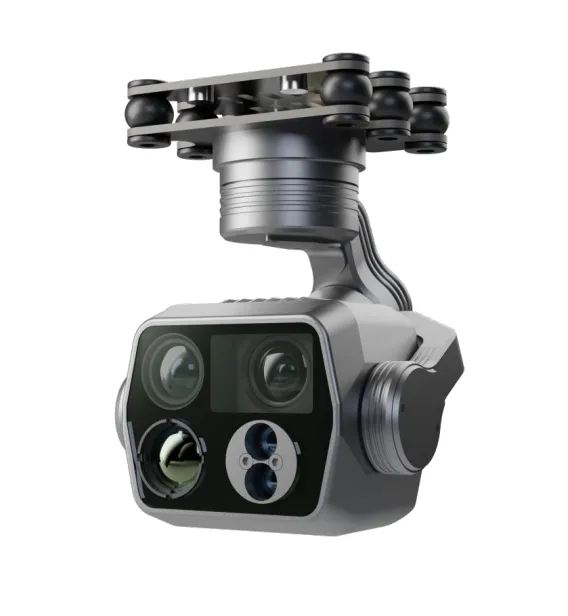

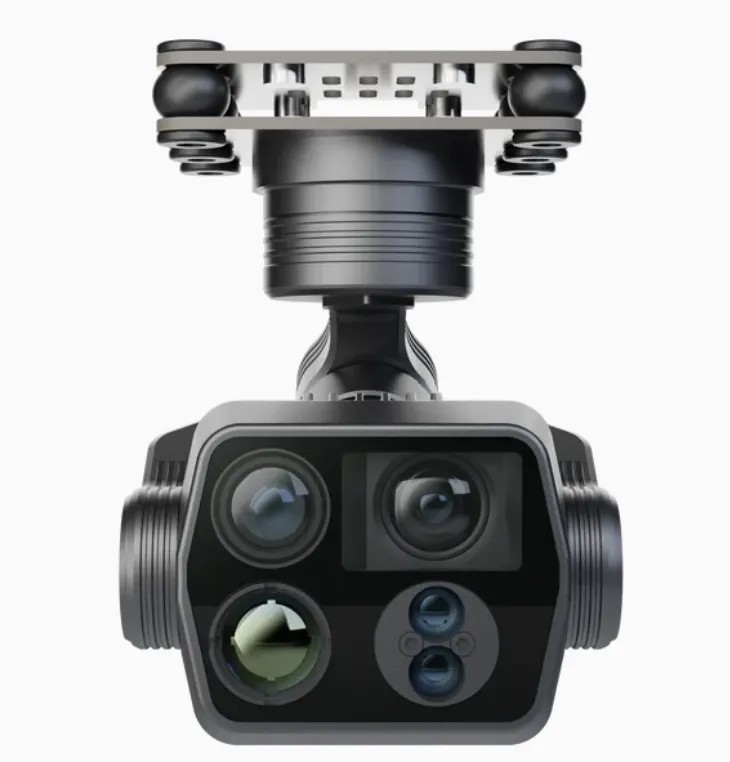

Skydroid C14 Professional Drone Gimbal Camera
The Skydroid C14 is a compact industrial-grade multi-sensor drone payload engineered for professional UAV operations. Featuring a mechanically stabilized 3-axis gimbal, high-definition visible cameras, thermal imaging, laser ranging and intelligent imaging capabilities, it enables reliable aerial inspections in both daylight and low-visibility conditions.
Designed for enterprise drone manufacturers, integrators and UAV service providers, the C14 delivers stable imagery, precise target observation and long-distance situational awareness.
Key Features

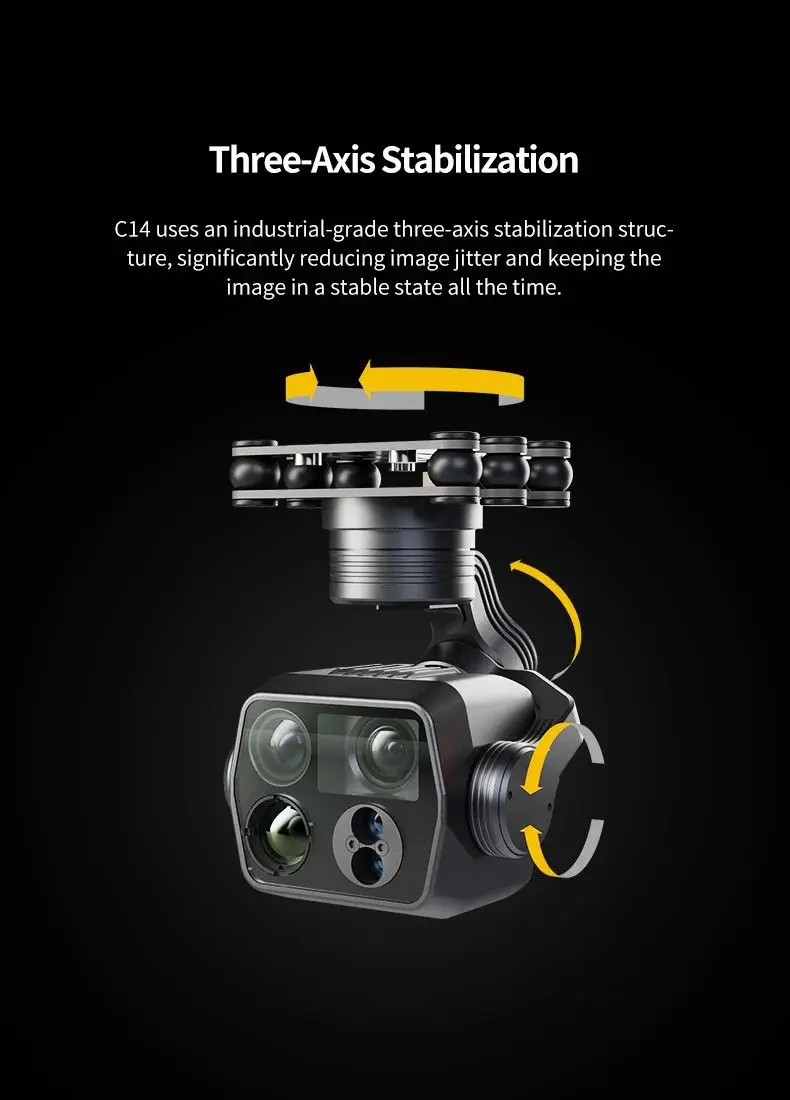

- Industrial-grade 3-axis mechanical stabilization
- Dual visible-light camera system
- 100× hybrid electronic zoom
- 640 × 512 thermal imaging sensor
- Integrated laser rangefinder up to 1200 m
- RTSP video streaming
- Ethernet communication interface

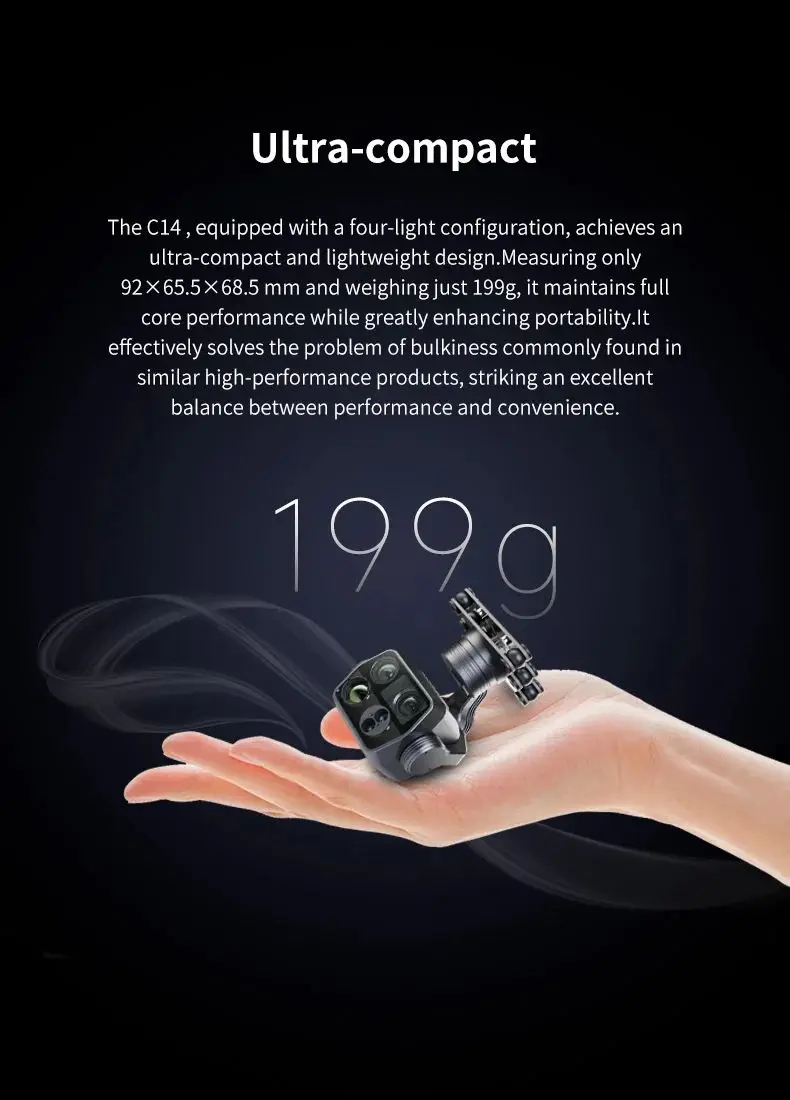

- Lightweight design (approximately 199 g)
- Supports ceiling and inverted installation
- High stabilization accuracy for professional aerial imaging

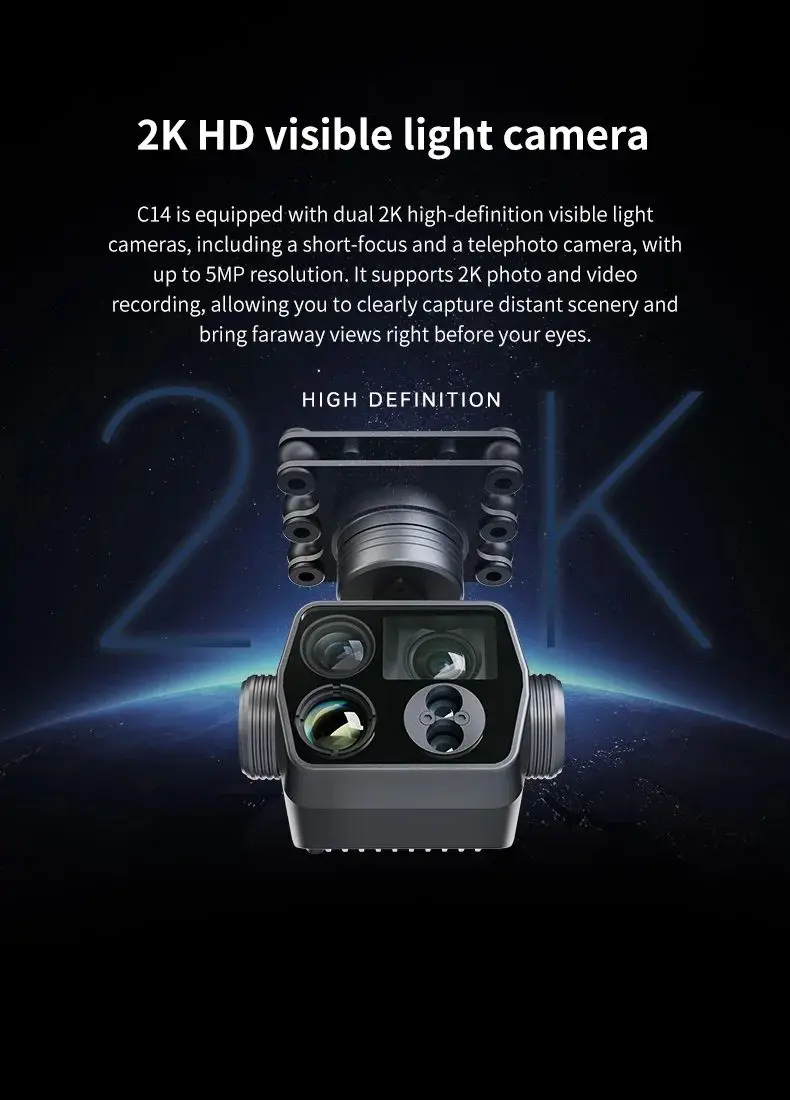

Visible Imaging

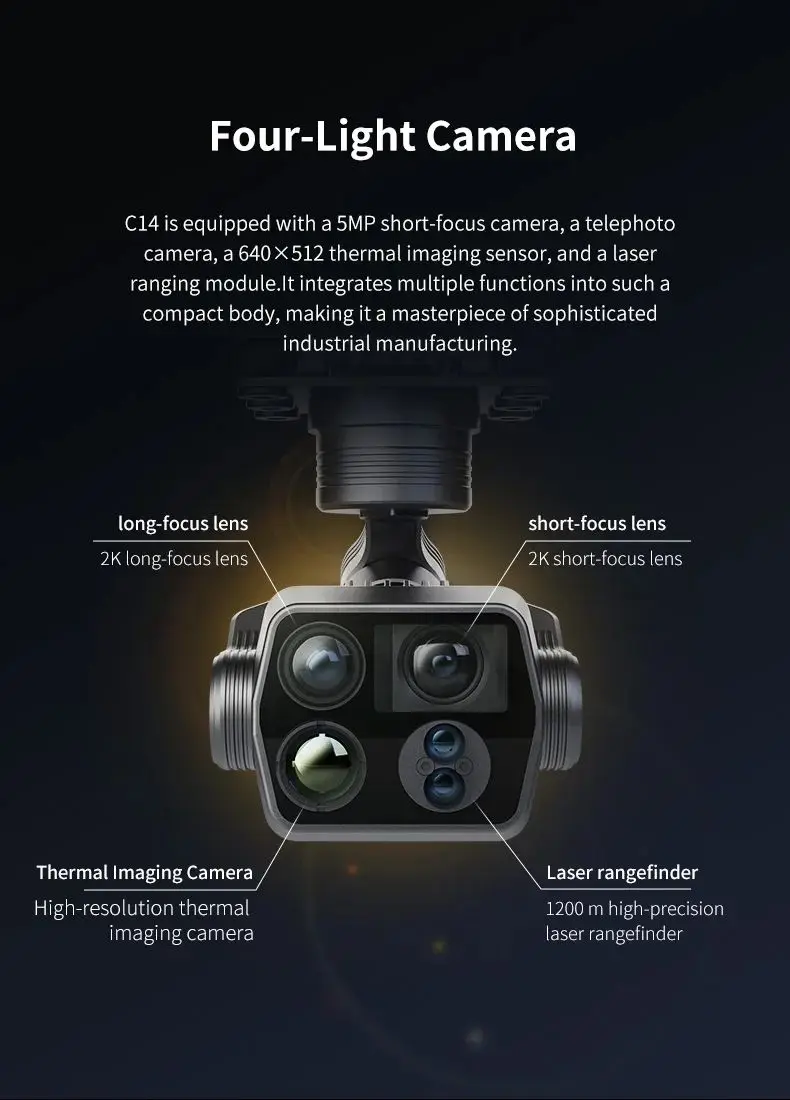

The C14 integrates two high-definition visible cameras for wide-area observation and long-distance target identification.
Features include:
- 5 MP imaging
- Up to 2880 × 1620 recording
- High-quality image capture
- Wide-angle and telephoto viewing
- Hybrid zoom for detailed inspections
Thermal Imaging
The integrated thermal camera enables detection of heat signatures in challenging environments.
Typical applications include:
- Electrical inspections
- Solar farm inspection
- Fire detection
- Search and rescue
- Wildlife monitoring
- Building diagnostics
- Security surveillance
Laser Rangefinder
The built-in laser rangefinder provides accurate distance measurements for target localization.
Features:
- Up to 1200 m ranging capability
- High measurement accuracy
- Fast distance acquisition
- Suitable for mapping and inspection workflows
Professional Applications
The Skydroid C14 is suitable for:
- Infrastructure inspection
- Transmission line inspection
- Oil & gas inspection
- Railway inspection
- Mining operations
- Forest monitoring
- Border surveillance
- Disaster response
- Public safety
- Law enforcement
- Industrial asset inspection

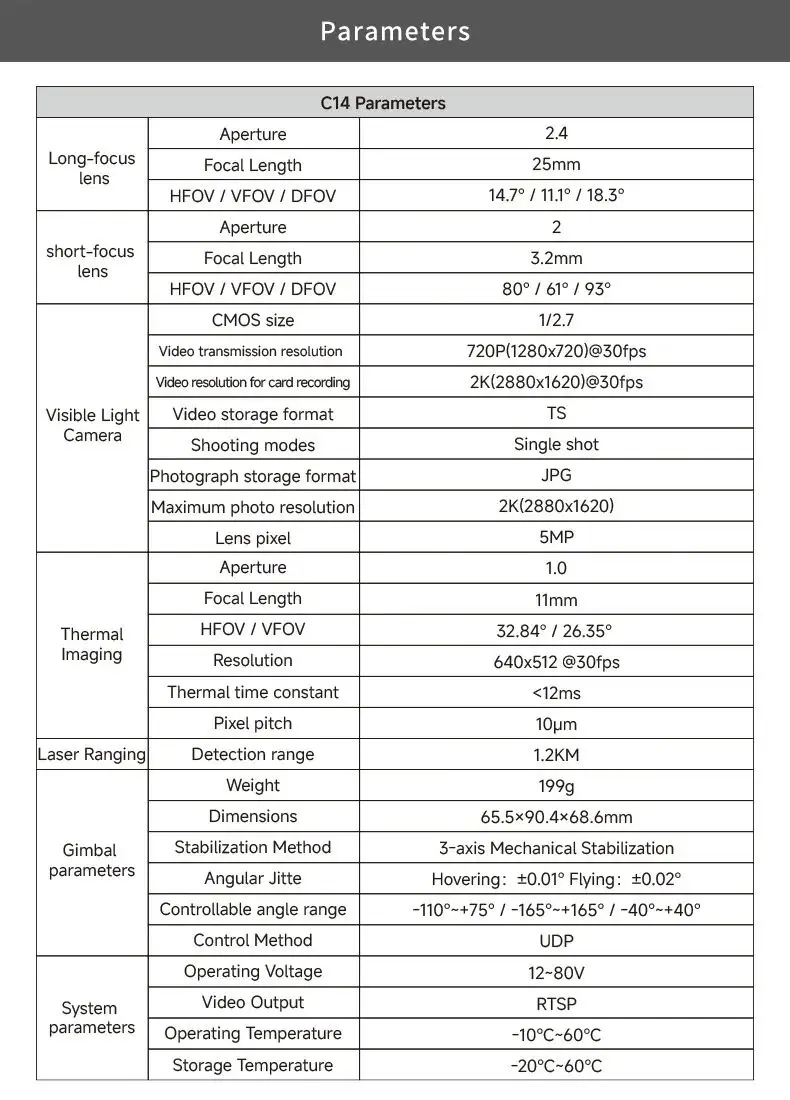

Technical Specifications
Gimbal
- 3-axis mechanical stabilization
- Ethernet video output
- UDP control
- Operating voltage: 12–80 V
- Weight: approximately 199 g
Visible Camera
- 5 MP sensor
- 2880 × 1620 recording
- 100× hybrid zoom
- MicroSD storage support
Thermal Camera
- Resolution: 640 × 512
- 30 Hz refresh rate
- 8–14 µm spectral response
- Detection range up to approximately 1.1 km
Laser Rangefinder
- Maximum ranging distance: 1200 m
- 905 nm wavelength
- High ranging accuracy
Package Contents
- Skydroid C14 Gimbal Camera
- Power and communication cable
- Mounting hardware
- MicroSD card (where supplied by manufacturer)
- User documentation
