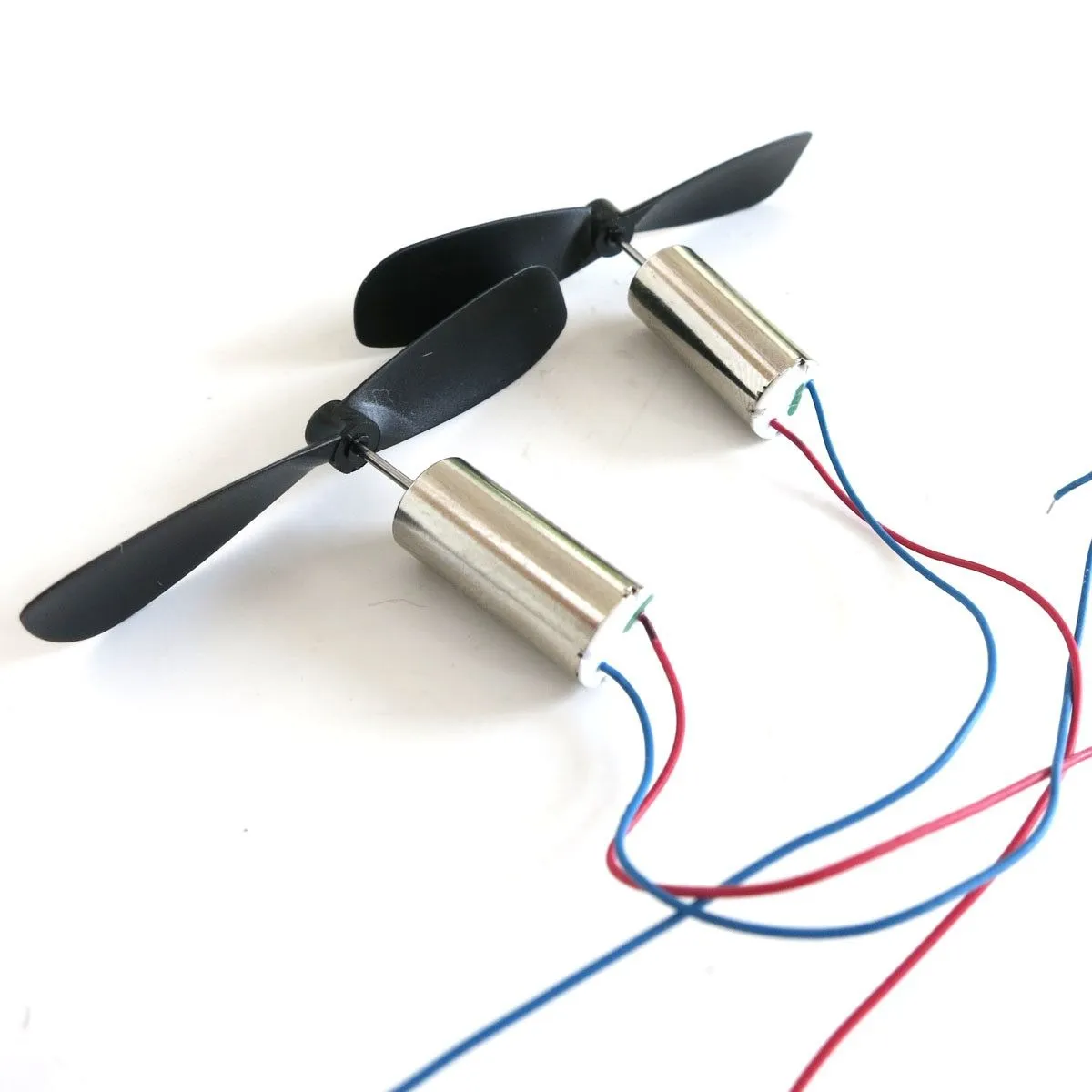

Micro Coreless Motor 4Pcs 7x16mm with Propeller for Micro Drone Quadcopter Motor

Micro Coreless Motor are micro motors used in Drones and Quadcopters. These motors are coreless, meaning they do not have metal core in the rotor. These motors can achieve higher RPM with less load. This property makes them suitable for use in flying objects such as Drones, Quadcopters, Helicopters, Etc. they are very small in size and have an RPM range of 6000 (with load) to 48000(no load). These motors operate on a voltage of 3-5 volts and peak current consumption of 2A. These motors are suitable for micro drones, quadcopters.



Specifications:

• Size : 7mm diameter x 16mm length
• Motor Type : Brushed Coreless
• Voltage: 3.7-5VDC
• RPM(no load) : 48000
• RPM(with load) : 6000-12000
• Max Current : 2 Amps
• Propeller Size : 45mm Diameter
• Shaft diameter : 0.8mm
• Weight with propeller : 2 grams



Package Includes:

4 x 7x16mm Coreless Motors

2 x Clockwise Propeller 45mm

2 x Counter-Clockwise Propeller 45mm

(Color choice may be subject to availability)
