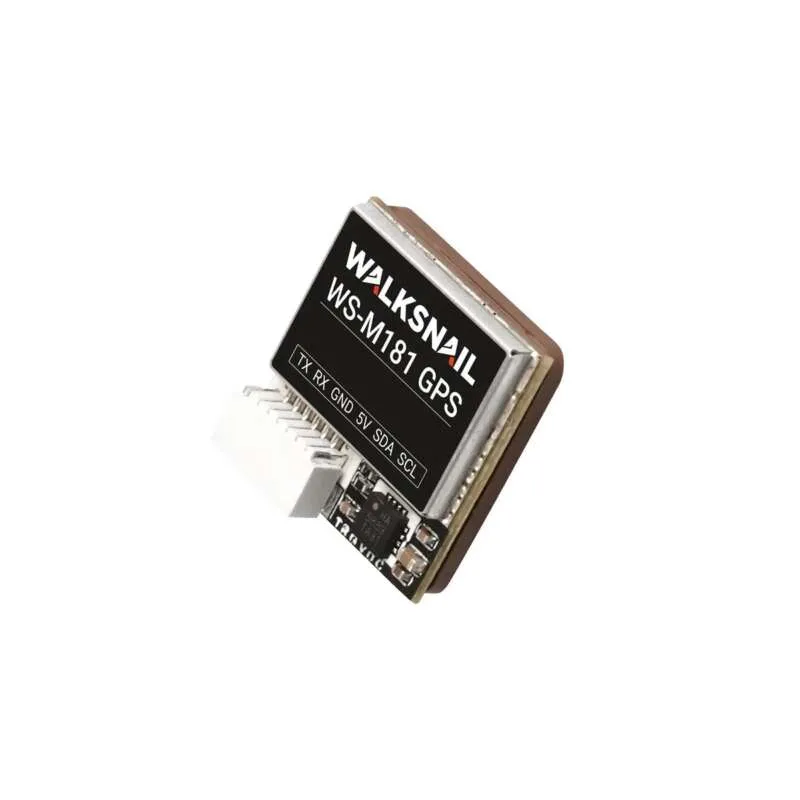

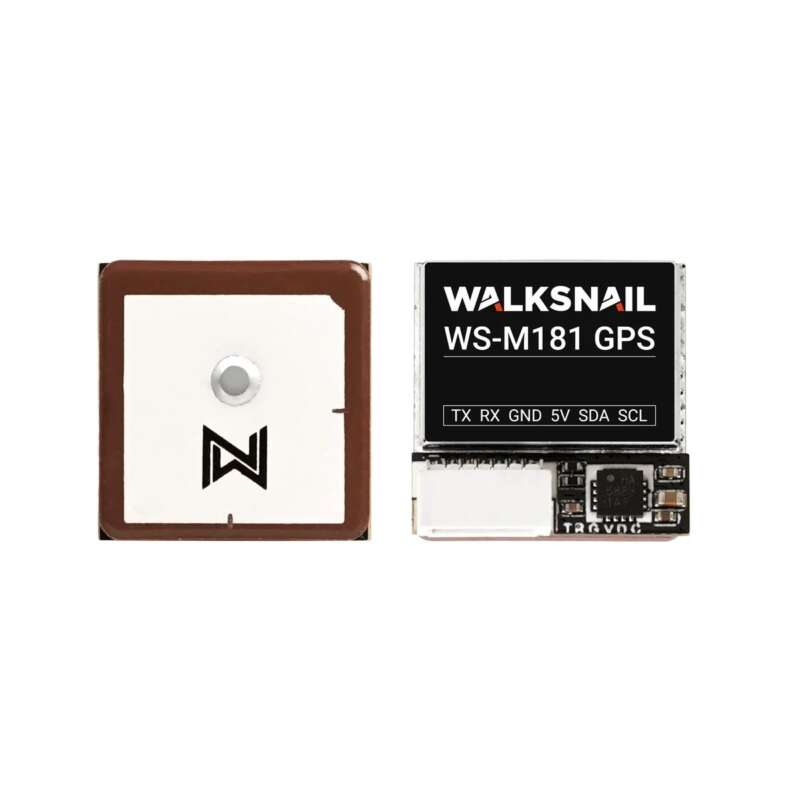

The Walksnail WS-M181 is a compact, high-performance GPS module designed for FPV (First-Person View) drones and robotics applications. Unlike traditional GPS receivers, this advanced module integrates multiple sensors into a single, efficient unit.
Its standout capability lies in combining high-accuracy positioning with precise heading data, making it perfect for autonomous navigation and smart drone functionalities such as return-to-home, waypoint missions, and position hold.
Key Components
GPS/GNSS Core: u-blox M10 GNSS Platform
At the heart of the WS-M181 lies the powerful u-blox M10 GNSS platform, which delivers next-generation positioning performance.
Unlike older GPS modules that depend solely on the U.S. satellite network, the M10 platform supports multi-constellation tracking, allowing it to connect with multiple global satellite systems simultaneously, including:
- GPS (USA)
- Galileo (Europe)
- BeiDou (China)
- QZSS (Japan)
Because it can access data from more satellites, the module provides:
- Faster Time-to-First-Fix (TTFF): It locks onto satellites much quicker, even from a cold start.
- Greater Accuracy & Reliability: With signals from over 20 satellites, it achieves precise positioning (typically 2–3 meters) and maintains performance even in challenging areas such as urban environments.
- High Sensitivity: The M10 chipset performs exceptionally well in weak-signal conditions, ensuring stable tracking where other modules may fail.
Built-in Compass: QMC5883L Magnetometer
Another defining feature of the WS-M181 is its integrated QMC5883L 3-axis magnetometer, which acts as a digital compass.
While GPS provides position and speed, it cannot determine orientation. This is where the magnetometer comes in—it detects both the strength and direction of the Earth’s magnetic field, allowing the system to know which way it’s facing.
In drones and robotics, this enables:
- Accurate Heading/Yaw Measurement (0°–360°)
- Return-to-Home (RTH): Ensures the drone returns accurately to its take-off point.
- Waypoint Navigation: Allows smooth, autonomous movement between pre-set coordinates.
- Loiter or Position Hold: Helps the drone maintain a fixed position and orientation during hover or idle states.
Thanks to this integrated compass, pilots gain more stable control and better orientation awareness during flight.

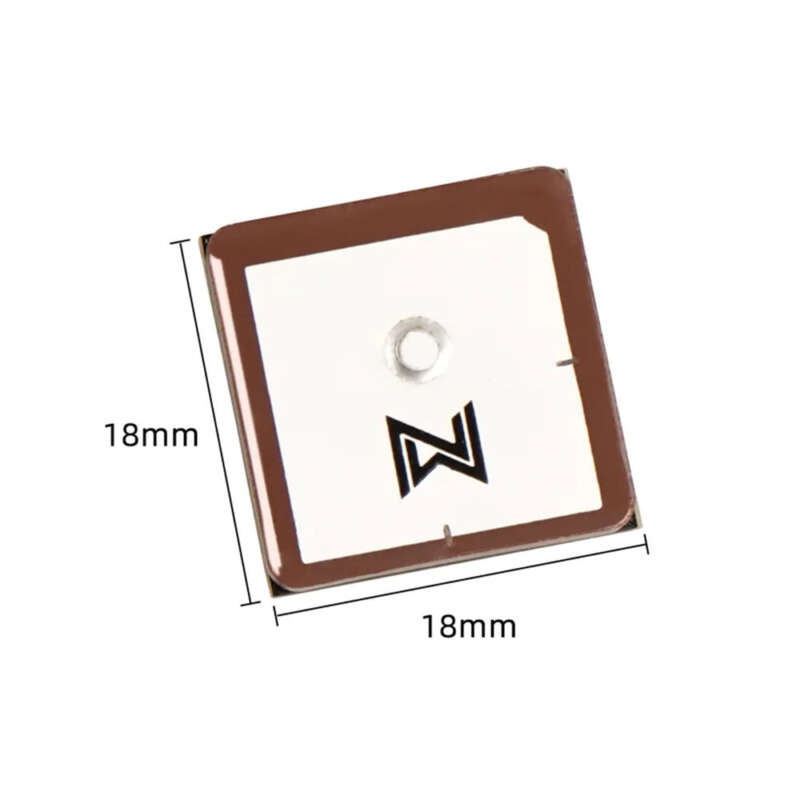

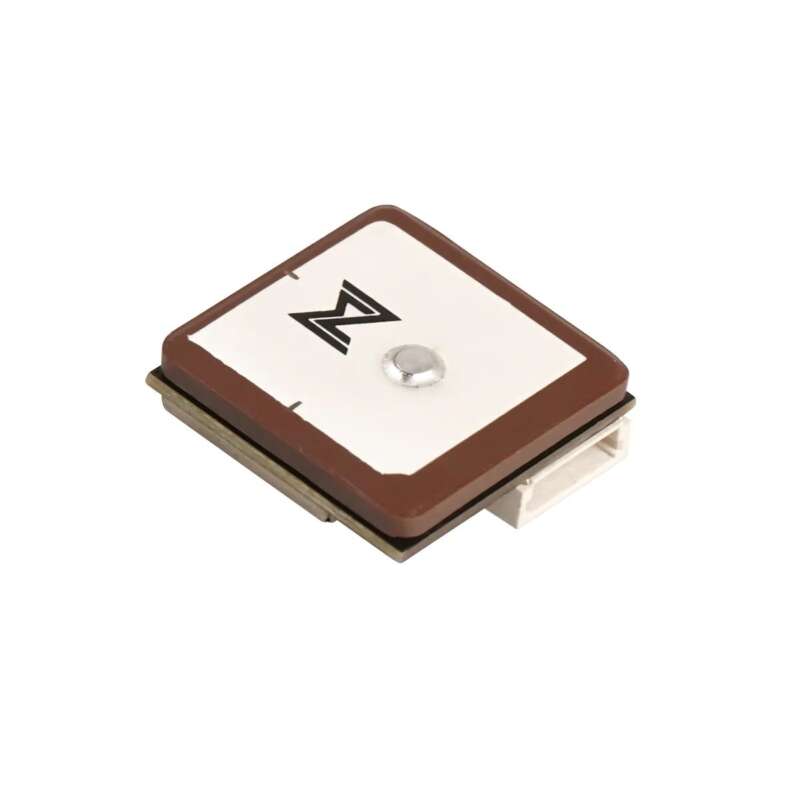

Antenna: Built-in Ceramic Patch Type
The WS-M181 features a compact ceramic patch antenna, designed to be both lightweight and space-efficient.
This integrated antenna design eliminates the need for bulky external antennas, simplifying installation and reducing total system weight.
However, it’s worth noting that because it’s a smaller internal antenna, signal performance can be slightly affected by obstructions such as carbon fiber frames or nearby electronics.
Still, for most FPV and robotics applications, this design strikes the perfect balance between size, performance, and ease of use.
Additional Features & Construction
Beyond its GPS and compass integration, the WS-M181 includes several thoughtful design enhancements:
- Internal Rechargeable Battery: A small backup cell powers the GNSS receiver’s memory, storing data such as satellite almanacs, last-known position, and current time. This feature enables a fast Hot Start, allowing the GPS to reconnect almost instantly when powered on again.
- Wide Operating Voltage (3V–5.5V): This broad range ensures compatibility with most flight controllers and drone power systems.
- Standard Communication Interface (UART): Using a UART serial connection, it easily integrates with popular systems like Betaflight, iNav, and ArduPilot without complex setup.
Technical Specifications
-
GNSS Platform : u-blox M10
-
Supported Satellite Systems : GPS, Galileo, BeiDou, QZSS
-
Compass : QMC5883L 3-Axis Magnetometer
-
Antenna : Built-in Ceramic Patch
-
Communication Interface : UART (Serial)
-
Default Baud Rate : 115200
-
Operating Voltage Range : 3.0 V – 5.5 V
-
Backup Power : Integrated Rechargeable Battery
-
Typical Positioning Accuracy : 2–3 meters
-
Highlight Feature : Combined GPS + Compass in one compact module
In summary, the Walksnail WS-M181 is a premium, all-in-one navigation solution that merges high-end GNSS performance with accurate compass functionality.Powered by the u-blox M10 chipset, it represents the latest generation of consumer-grade GPS technology.Although its built-in antenna has some sensitivity limitations compared to external designs, its compact form factor, reliable accuracy, and easy integration make it an outstanding choice for FPV pilots, hobbyists, and robotics enthusiasts who demand dependable position and heading data — all in a single, streamlined unit.
Package Includes
1 x CADDX Walksnail WS-M181 GPS U-blox M10 GNSS Compass FPV Drone GPS Module
