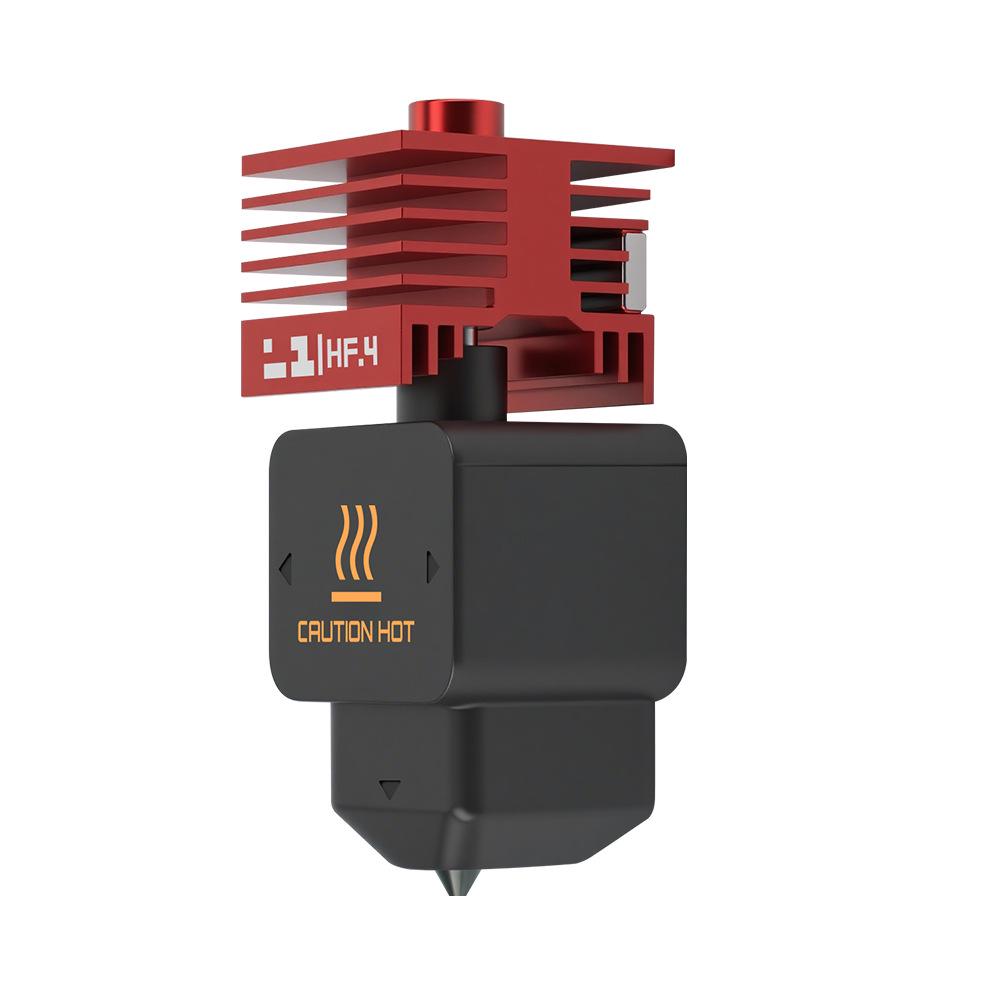

The H2D High Flow One-piece Hardened Steel Hotend (0.4mm) for Bambu Lab A1 & A1 Mini is an elite high-speed performance hotend engineered for makers seeking unmatched extrusion volume, extreme abrasion resistance, and effortless plug-and-play maintenance. Featuring an enlarged internal melt zone and a hardened steel nozzle treated with a specialized nano-coating, this hotend unlocks high-speed printing speeds with volumetric flow rates exceeding 65 mm³/s.

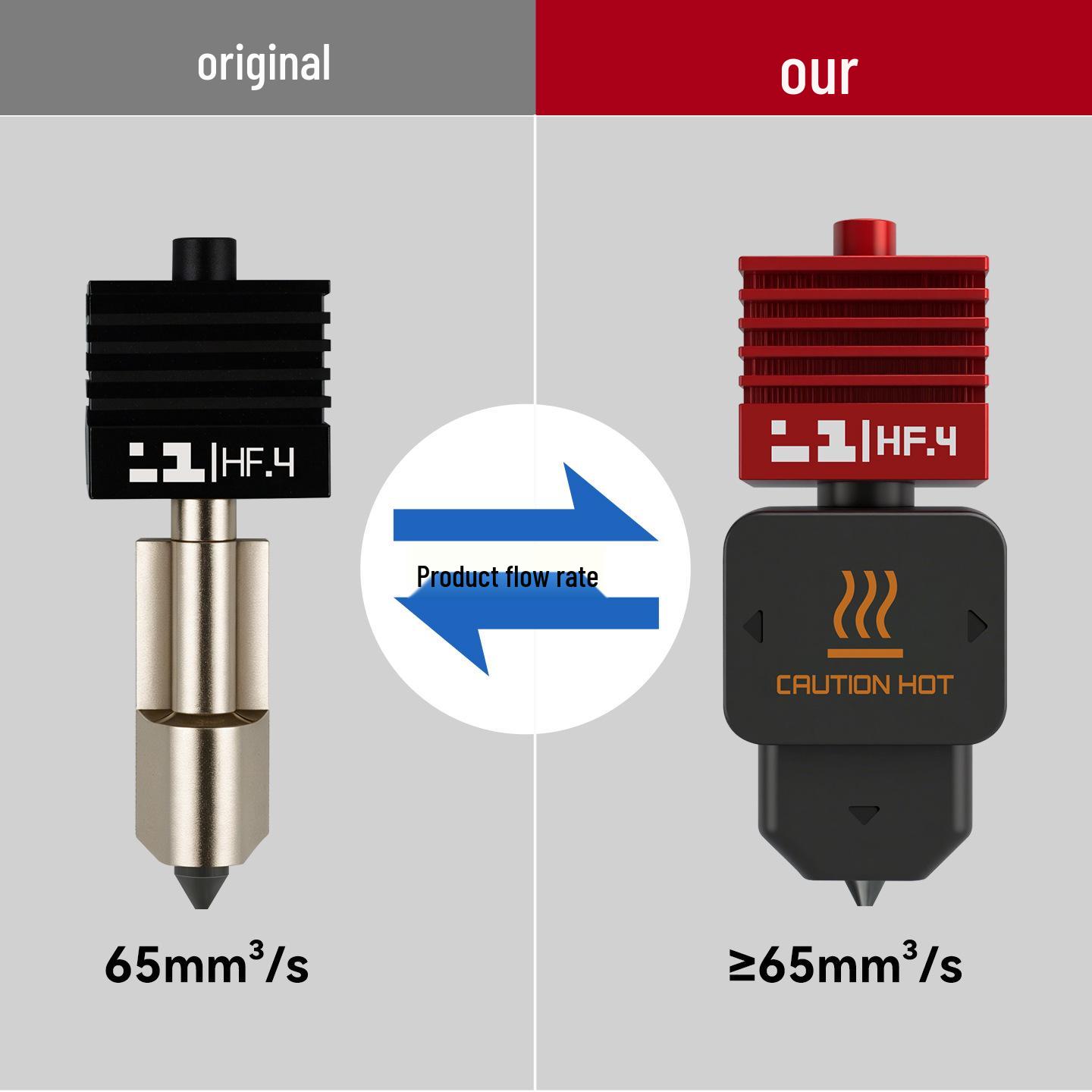

Extreme Volumetric Flow for High-Speed 3D Printing
While standard OEM hotends can become flow-limited at elevated print speeds, the H2D High-Flow architecture provides an extended thermal transition and melt cavity. By efficiently liquefying filament across a larger surface area, it reliably achieves volumetric speeds of ≥ 65 mm³/s, eliminating under-extrusion, layer starvation, and brittle infill during rapid infill and perimeters on Bambu Lab A1 and A1 Mini printers.

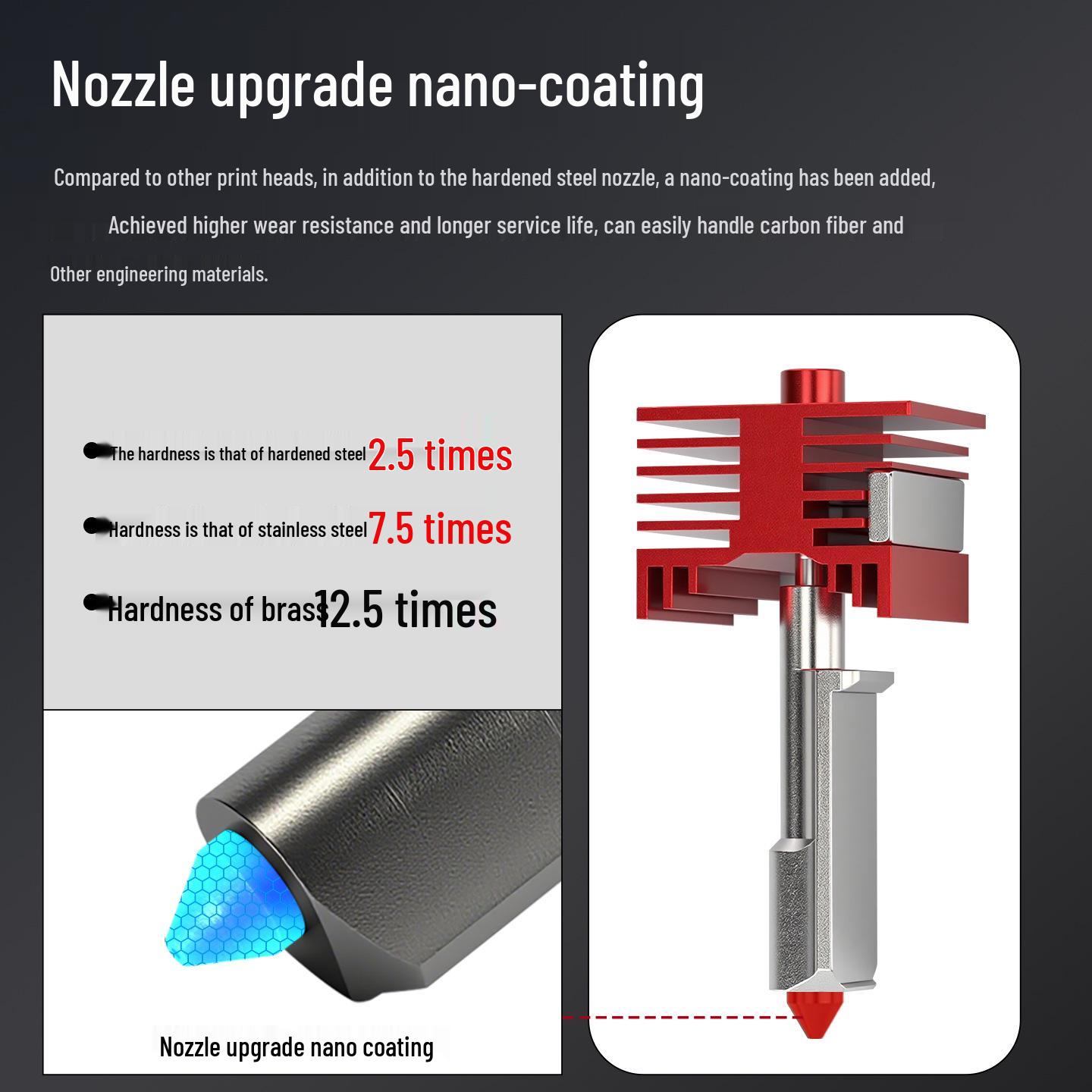

Nano-Coated Hardened Steel for Abrasive Composites
Standard brass and even untreated hardened steel nozzles suffer accelerated wear when running abrasive materials. The H2D nozzle features an advanced nano-coating treatment delivering exceptional surface hardness:
- 2.5× Harder than standard hardened tool steel
- 7.5× Harder than stainless steel
- 12.5× Harder than standard brass nozzles
This allows endless printing of abrasive composite filaments including Carbon Fiber (PLA-CF, PETG-CF, PA-CF), Glass Fiber, Glow-in-the-Dark (phosphorescent), Wood, and Metal-infused polymers without nozzle orifice widening or degradation of dimensional accuracy.
Key Features & Engineering Highlights
- High-Speed Flow Chamber: Melt zone optimized for 300–600 mm/s print speeds without skipped steps or extruder grinding.
- One-Piece Leak-Proof Design: Monolithic heatbreak-to-nozzle integration guarantees zero filament leaks or molten plastic oozing at high temperatures.
- Aircraft-Grade Red Anodized Radiator: Machined aluminum heatsink with distinctive red anodized finish and laser-etched
HF.4 identification for rapid visual size verification.
- Integrated Toolhead Magnet: Built-in side retaining magnet ensures instant, self-aligning 30-second installation into the Bambu Lab toolhead latch.
- Thermal Efficiency up to 300°C: All-metal construction easily handles high-temperature engineering polymers such as Nylon, PC, ABS, and ASA.
- Custom-Fit Thermal Silicone Sock: Includes high-grade black silicone sock with molded heat waves and CAUTION HOT indicator to maintain heat block thermal stability and prevent plastic accumulation.
Technical Specifications
| Parameter | Specification |
|---|

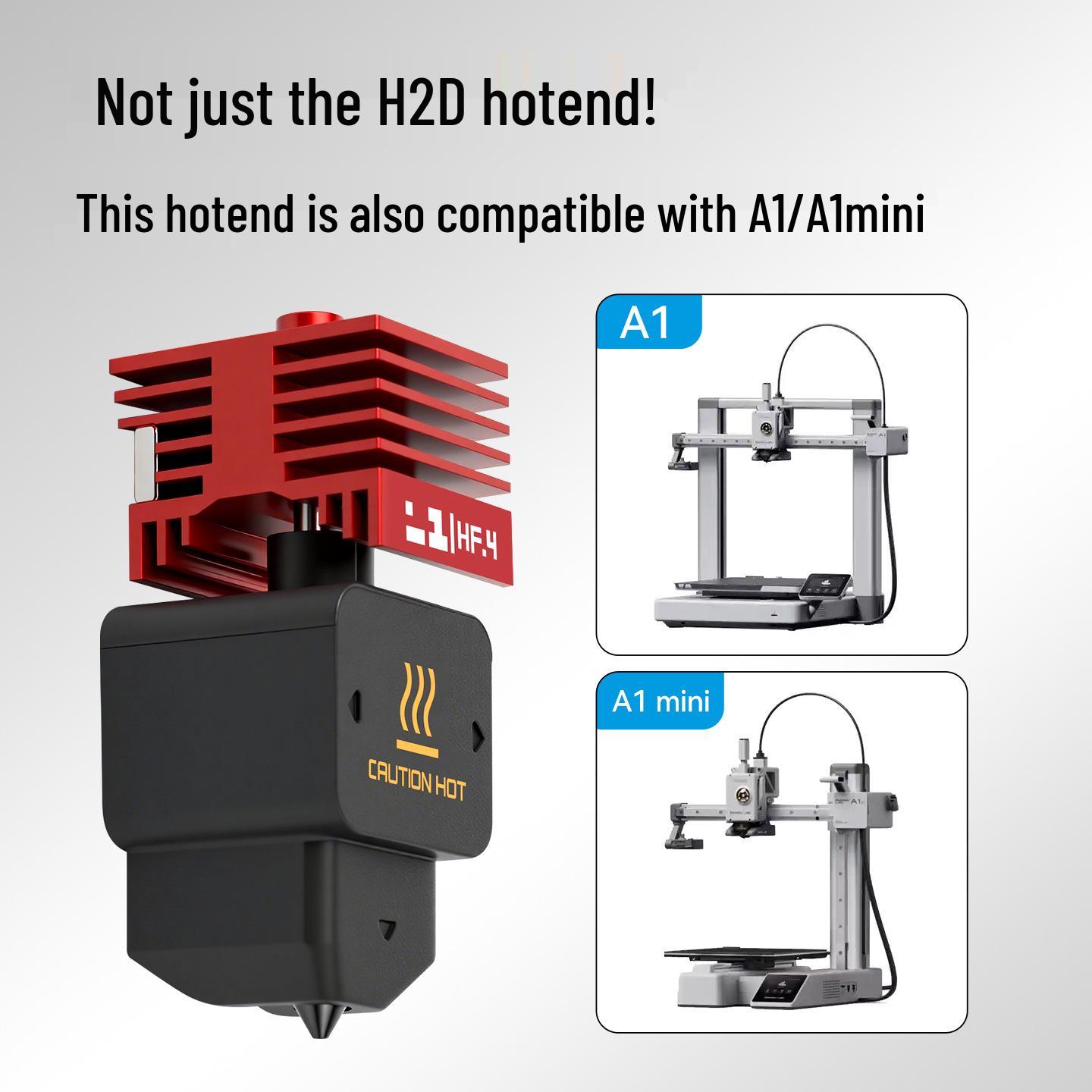

| Compatible 3D Printers | Bambu Lab A1, Bambu Lab A1 Mini |
| Nozzle Orifice Size | 0.4 mm |
| Filament Diameter | 1.75 mm |
| Max Volumetric Speed | ≥ 65 mm³/s |
| Max Printing Temperature | 300°C |
| Nozzle Core Material | Hardened Tool Steel (55–60 HRC) |
| Nozzle Surface Treatment | Ultra-Hard Nano-Coating |
| Heatsink Material | Anodized Aircraft Aluminium (Red) |
| Heatsink Engraving | HF.4 |
| Dimensions | 49 mm × 21 mm × 16.5 mm |
| Net Weight | 28 g |
| Supported Filaments | PLA, PETG, TPU, ABS, ASA, PC, PLA-CF, PETG-CF, PA-CF, Wood, Glow-in-the-dark |
| HSN Code | 84779000 |
| Country of Origin | China |
What's in the Box?
- 1x H2D High Flow One-Piece Hardened Steel Hotend 0.4mm (Red Heatsink)
- 1x Custom Black Silicone Thermal Sock (Pre-Installed)

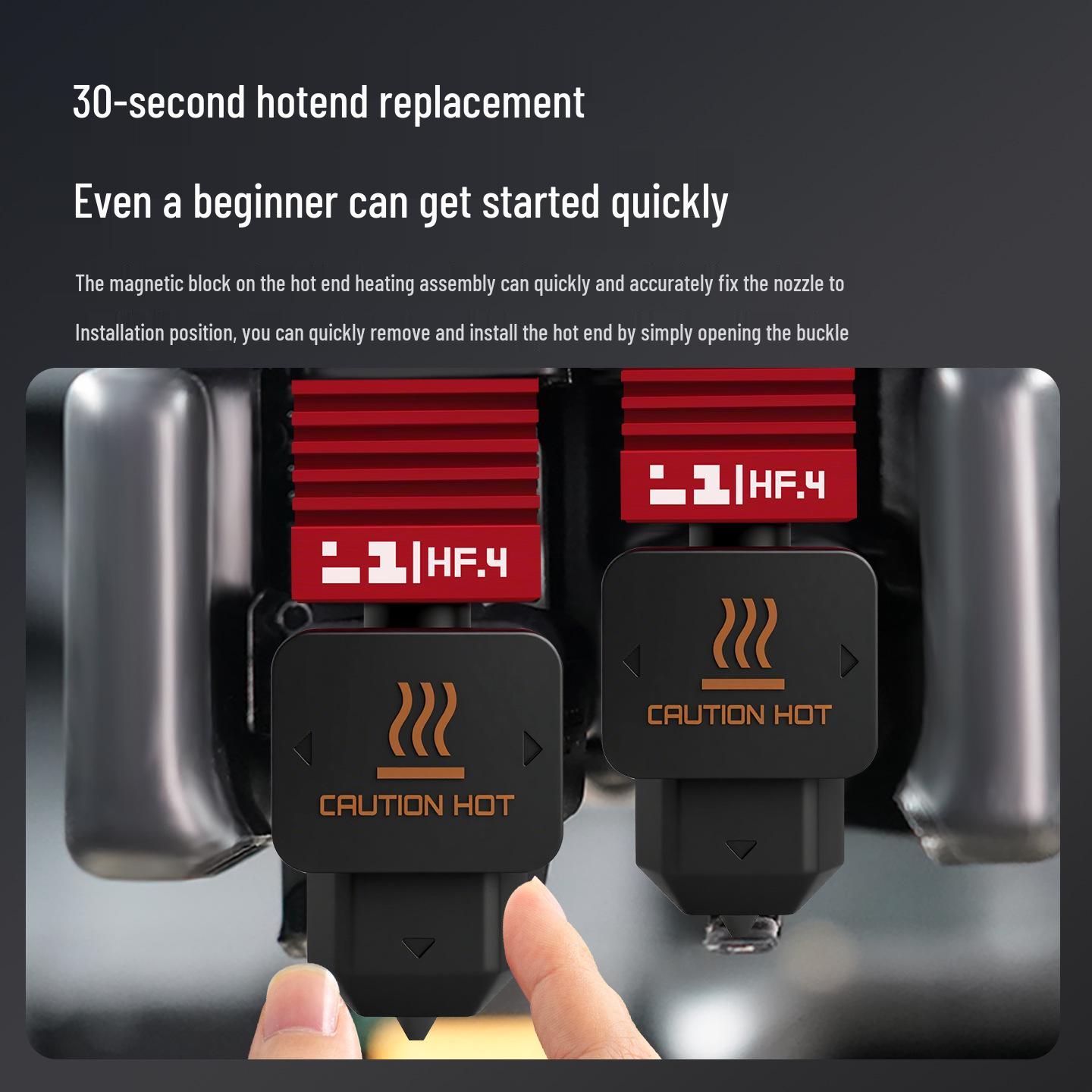

Installation Guide
- Ensure the toolhead has cooled to ambient room temperature before handling.
- Open the quick-release front latch on the Bambu Lab A1 / A1 Mini extruder assembly.
- Remove the existing hotend.
- Slide the new H2D High Flow Hotend into position; the integrated side magnet will firmly snap into place for perfect alignment.
- Close the toolhead front latch until it clicks securely.
- You're ready to print! In Bambu Studio or OrcaSlicer, your standard 0.4mm profile is fully compatible, and you can comfortably raise your volumetric speed limit up to 65 mm³/s for supported high-flow filaments.
