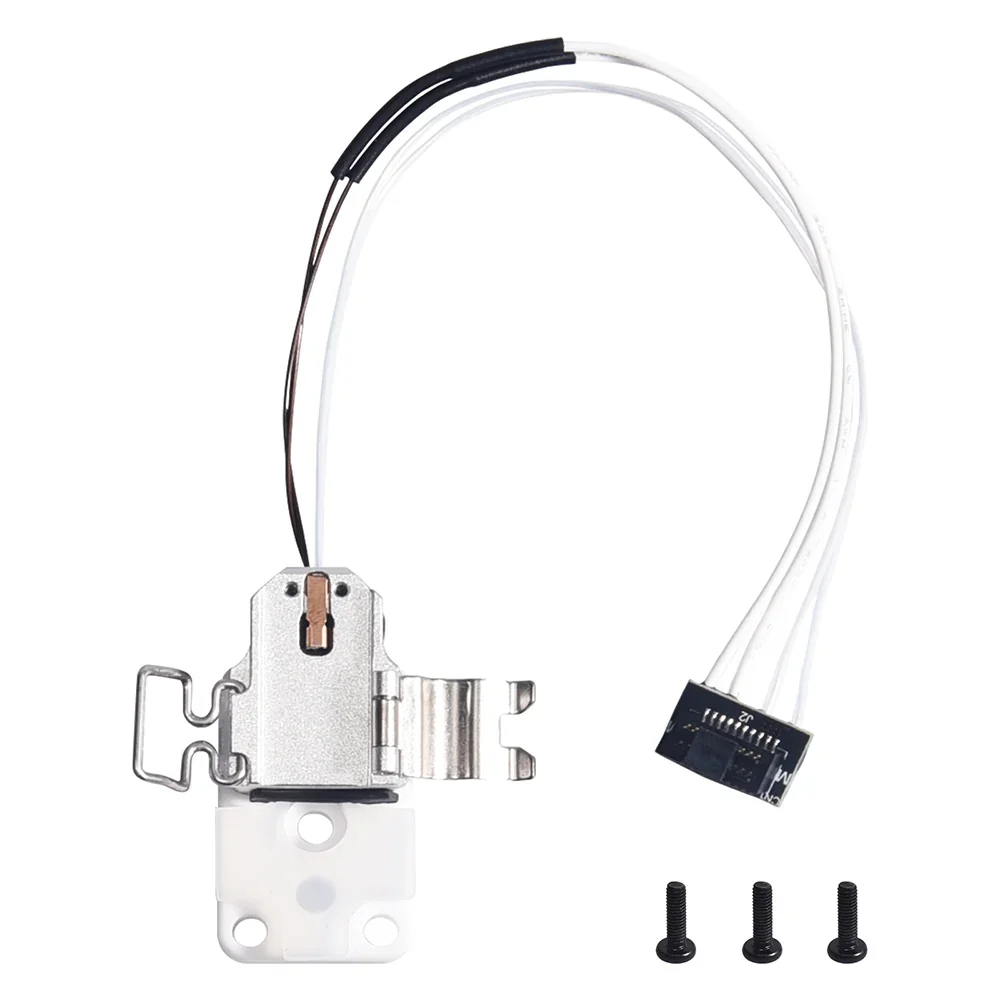

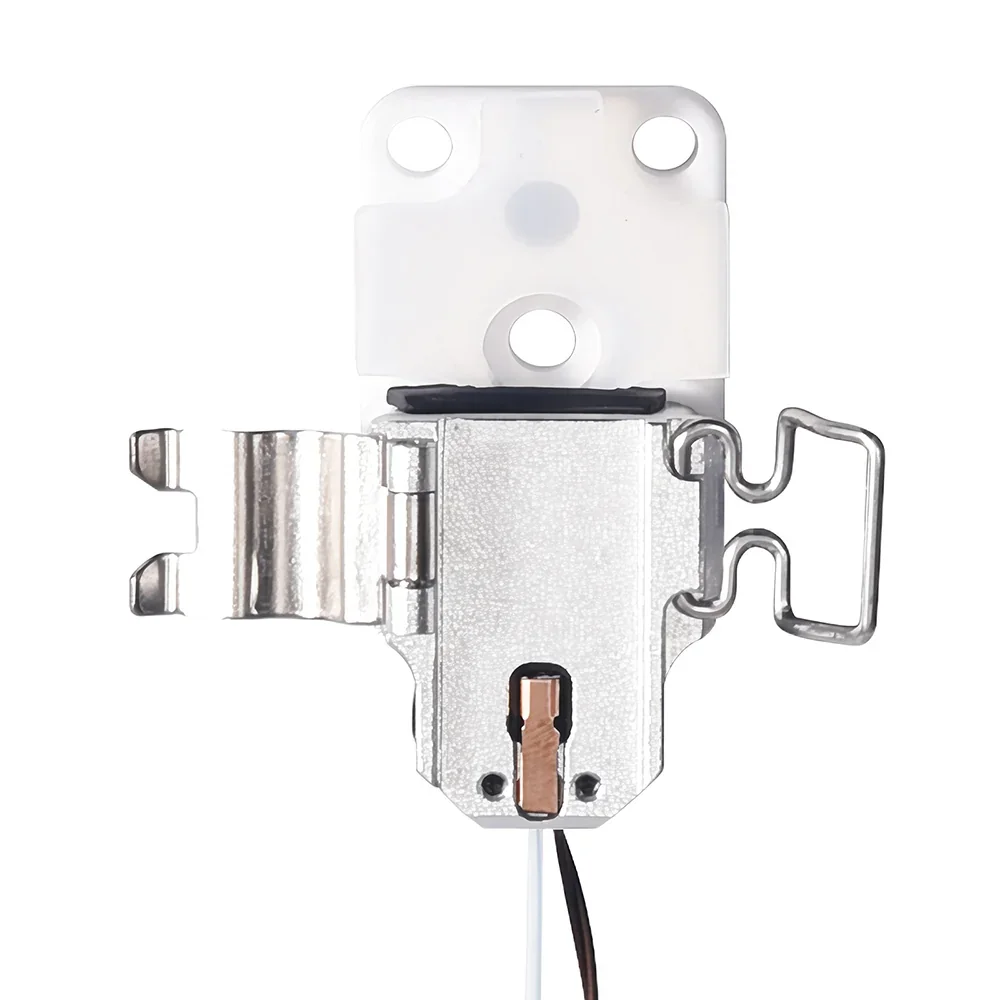

Upgraded Hotend Heating Assembly for Bambu Lab A1 / A1 Mini 3D Printer Upgraded Ceramic

The Upgraded Ceramic Hotend Heating Assembly for Bambu Lab A1 and A1 Mini is a high-performance thermal upgrade engineered to maximize melting efficiency, temperature stability, and high-speed reliability for your 3D printer.

Featuring an advanced high-efficiency ceramic heating core with superior thermal conductivity, this assembly delivers rapid thermal ramp-up and uniform heat distribution across the hotend block, preventing volumetric flow starvation during high-acceleration prints up to 500mm/s.

Key Features & Engineering Highlights

• Enhanced Thermal Response: The ceramic heating core responds instantly to PID temperature adjustments, virtually eliminating nozzle temperature dips during sudden layer fan boosts or high volumetric flow bursts.
• Consistent High-Speed Extrusion: Provides the sustained thermal energy required to keep up with rapid acceleration without causing under-extrusion, layer delamination, or extrusion clicks.
• True 300°C High-Temp Capability: Fully rated for high-temperature printing up to 300°C, expanding your material capabilities from standard PLA, PETG, and TPU to engineering filaments including ABS, ASA, PC, Nylon (PA), and carbon fiber composites.
• Vibration-Resistant Thermistor Potting: The integrated 100K NTC thermistor is secured with reinforced high-temperature ceramic compound to withstand high-frequency toolhead vibration.
• Drop-In Solderless Installation: Ships pre-terminated with the exact JST connector and spring retention clip matching your Bambu Lab toolhead breakout board.

Technical Specifications

Feature / Parameter	Specification Details
Compatible 3D Printers	Bambu Lab A1, Bambu Lab A1 Mini
Product Edition	Ceramic Upgraded High-Flow Edition
Part Code / SKU	S891
Operating Voltage	24V DC
Rated Power	48W – 50W High-Efficiency Ceramic
Maximum Operating Temperature	300°C Continuous
Integrated Sensor	Pre-Calibrated NTC 100K B3950 Thermistor
Connector Interface	Toolhead Direct-Plug JST Connector
Supported Filaments	PLA, PETG, TPU, ABS, ASA, PVA, PA, PC, PET-CF, PLA-CF
Item Weight	25g (0.025 kg)
Country of Origin	China

Quick Installation Guide

1. Power off your printer and allow the hotend to completely cool to room temperature.
2. Remove the front toolhead housing cover and unplug the heating assembly JST connector.
3. Release the metal spring retaining clip securing the heating block and slide out the old heater assembly.
4. Apply a thin, uniform layer of thermal interface grease (included) along the contact surface of the new ceramic heater.
5. Slide the upgraded ceramic heating assembly into the slot, secure with the spring clip, and connect the JST plug into the toolhead socket.
6. Power on your printer and perform a standard automated PID calibration through the printer touchscreen settings.

Package Contents:

• 1 × Upgraded Ceramic Hotend Heating Assembly for Bambu Lab A1 / A1 Mini
• 1 × Stainless Steel Spring Retaining Clip
• 1 × High-Conductivity Thermal Interface Compound Packet
