Makerbase MKS Robin Nano V3.1 Motherboard + TS35 Touch Display + 4 x TMC2209 V2 Drivers Bundle for 3D Printer

BUNDLE INCLUDES 1 X MKS ROBIN NANO V3.1, 1 X TS35 TOUCH DISPLAY, 4 X TMC2209 V2 DRIVERS

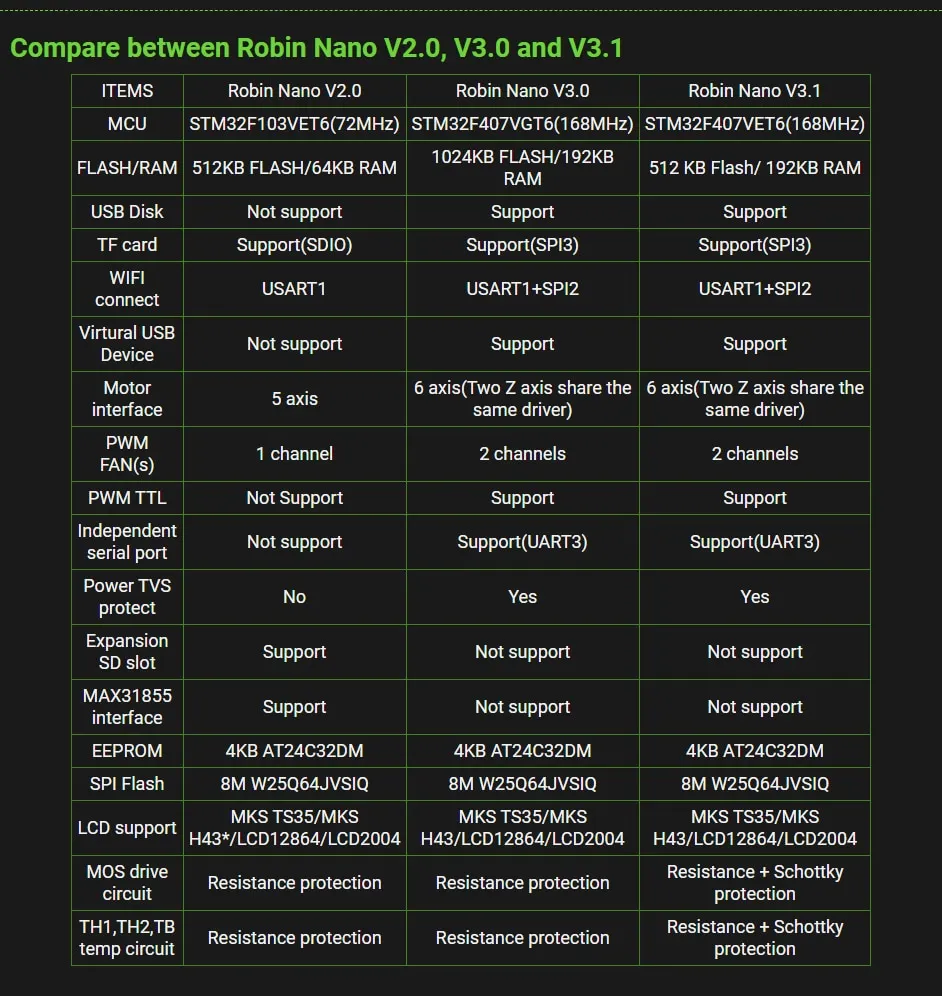

Robin nano V3.1 is an upgraded version of Robin Nano V2.0. The upgrade changes are quite large, including upgrading the MCU to the M4 core, and adding support for USB disk.

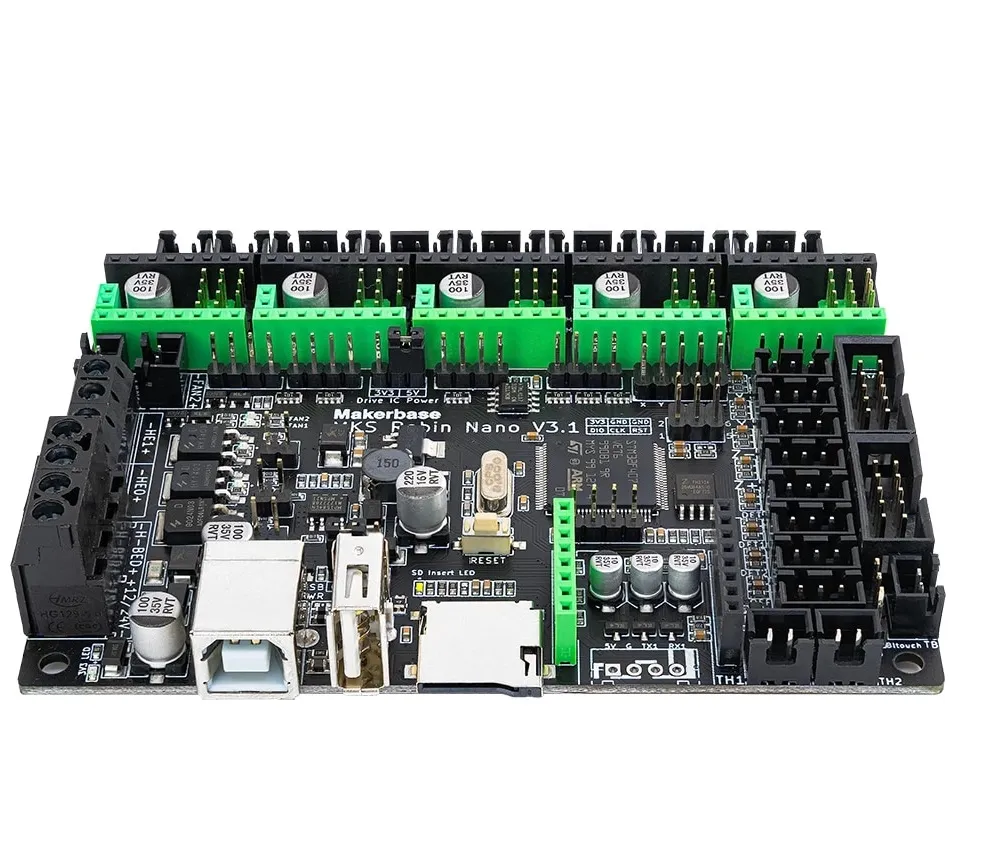

MKS Robin Nano V3 is a powerful 32-bit 3D printer control board with STM32F407VGT6.
Support Marlin2.0.

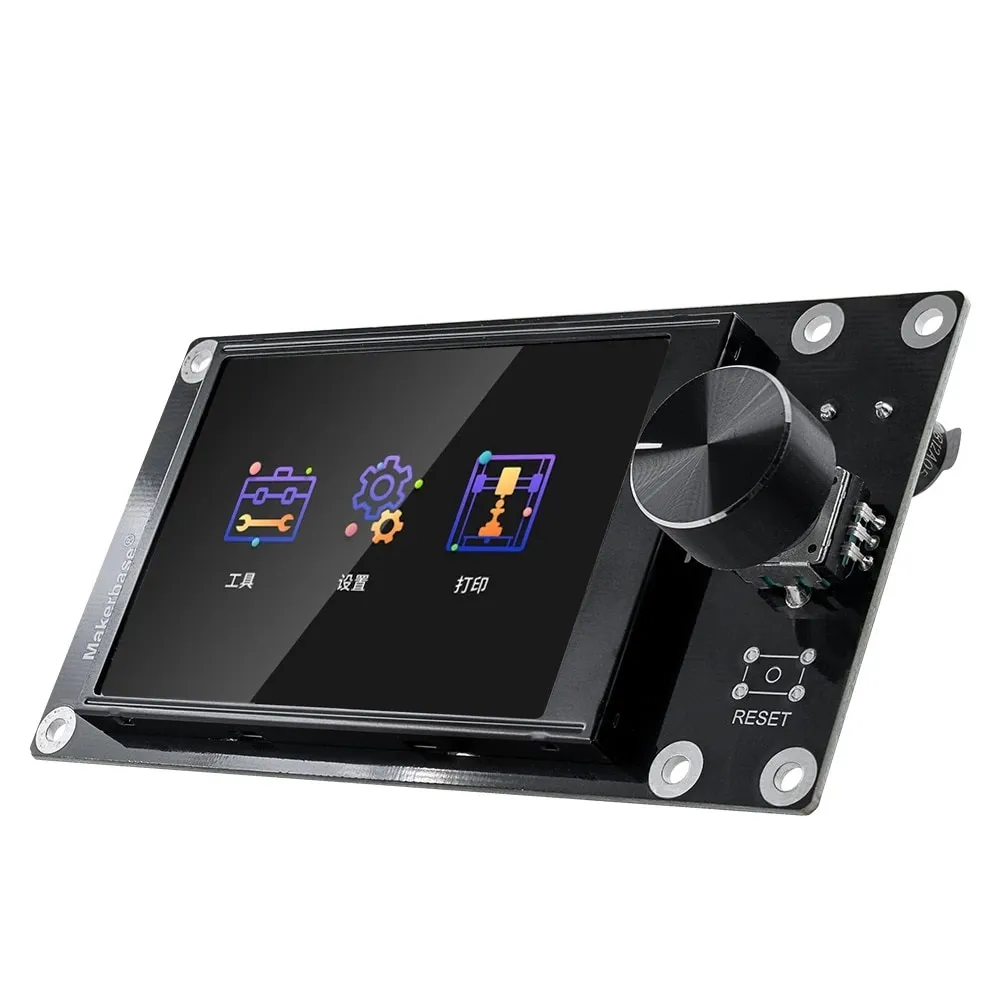

Support MKS TS35 touch Screens.
Support MKS H43 touch Screens.

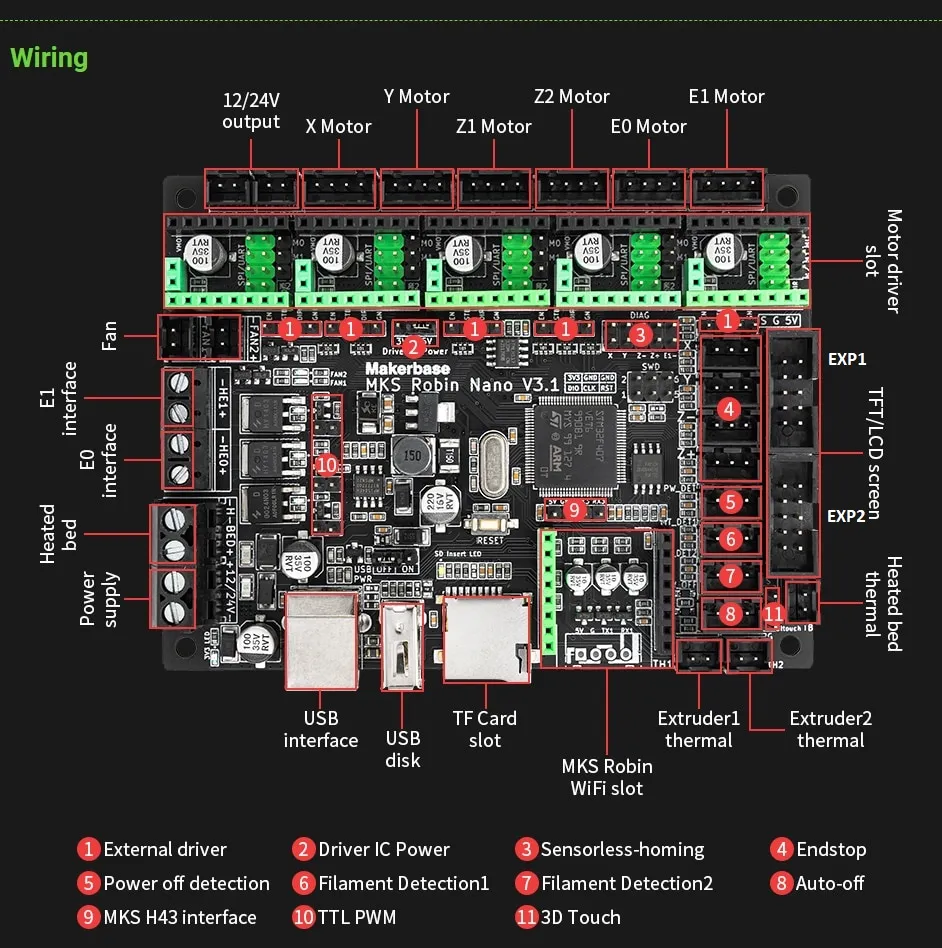

The motherboard integrates 5 AXIS interface, hot bed, 2 heating heads, 3 NTC100K.
Support TMC UART and SPI mode.
Support MKS Robin WIFI for cloud printing and supports firmware update by SD card and usb-disk.
Support SD card and usb-disk multimedia storage.
Support usb vcp and msc.



NOTE: Images of display are for representation purpose only. this board does not include the display. if you want to buy the display, you can buy separately from here

Github Link for Firmware and additional information

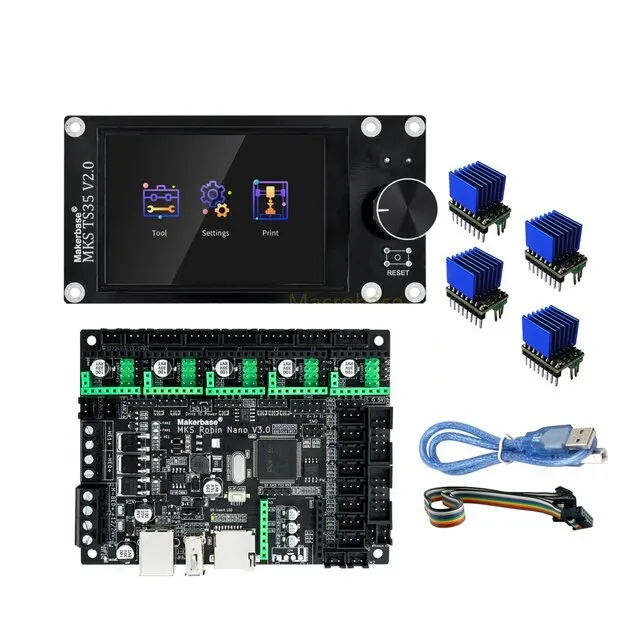

Package Includes:

1 x MKS Robin Nano V3.1 Motherboard + USB Cable

1 x TS35 Touchscreen Display

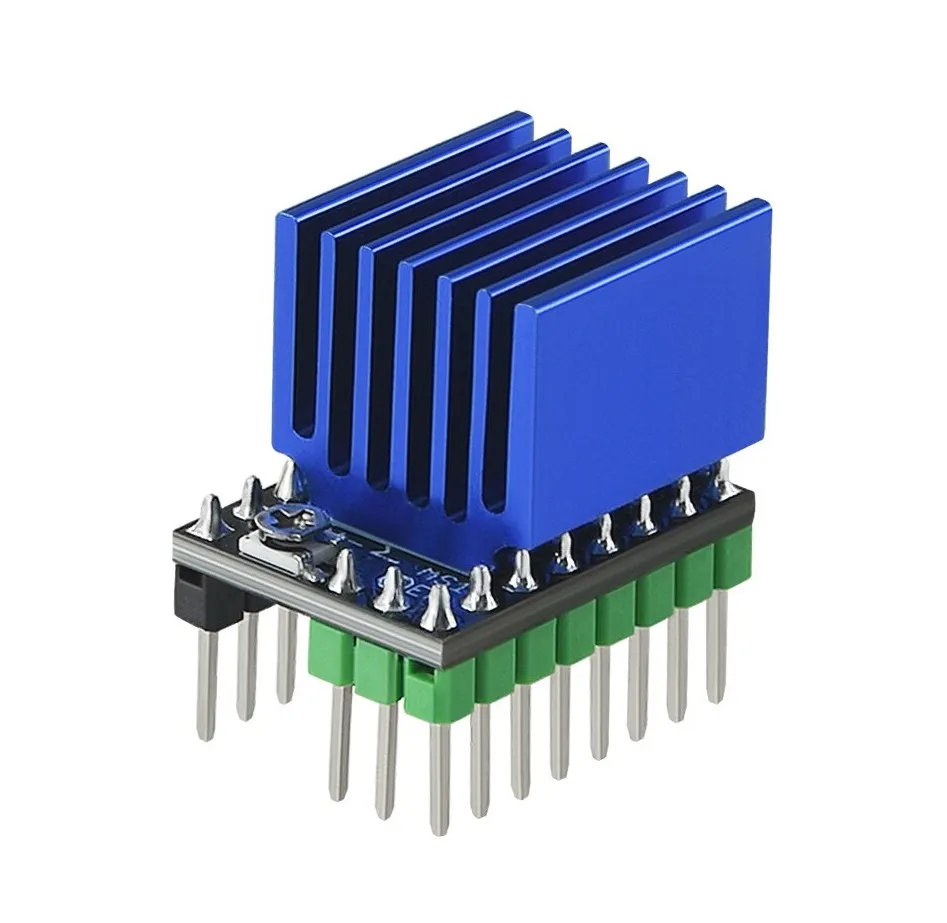

4 x TMC2209 V2.0 Drivers
