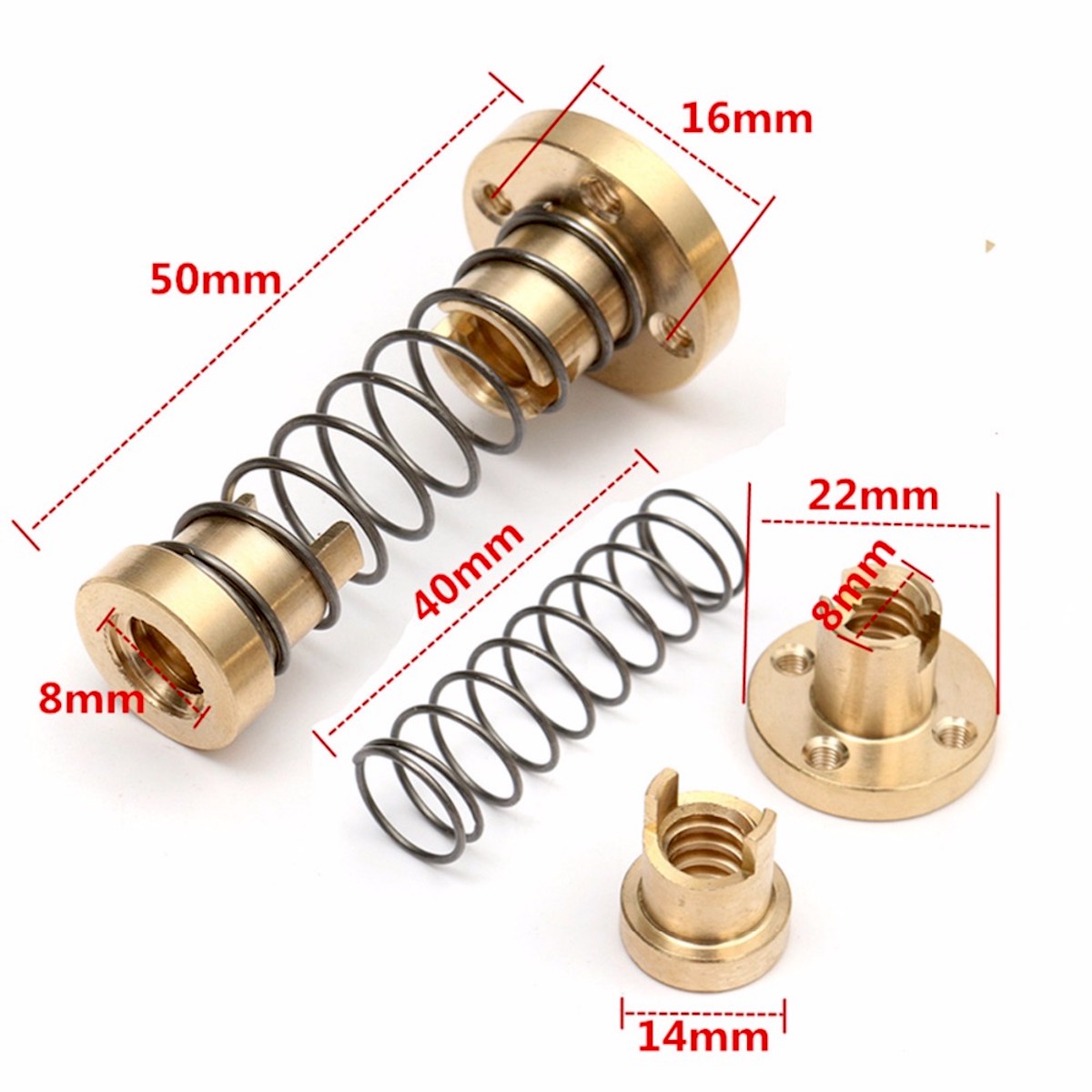

Anti Backlash Nut for TR8*8 8mm Diameter 4 Starts Lead Screw

This Anti-Backlash Nut features a mounting flange with four un-tapped holes for M3 screws. It is intended for use with Tr8*8(P2) leadscrews, which are 8mm-diameter rods with four independent trapezoidal threads spaced 2mm apart. One full revolution of such a rod will result in a 8.0mm linear displacement of the traveling nut.

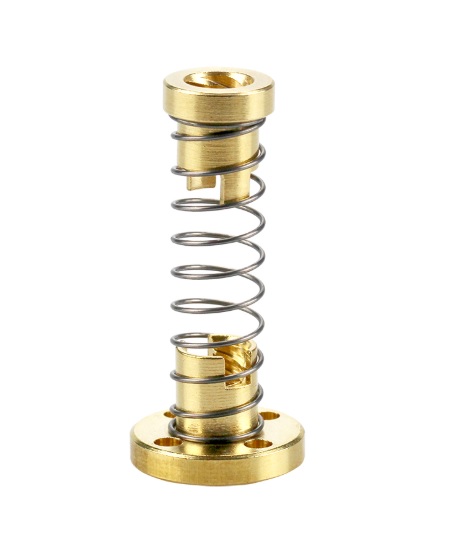

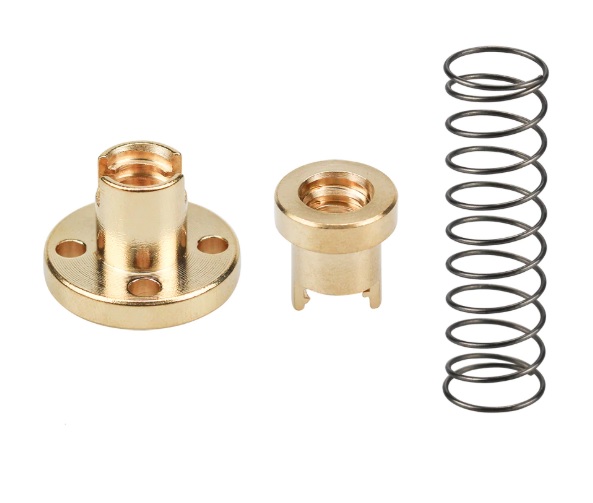

There are 2 brass threaded sections, one with a sleeve. The threaded sections are placed under pressure (to reduce backlash) by a spring.

Specifications:

• 100% Brand new and high quality
• Model:TR8*8
• Material: Brass
• Color: Golden
• Size: TR8x8
• Pitch: 2 mm
• Small Diameter: 16mm
• Large Diameter: 22mm
• Mounting Holes: 3mm
• Thread: 8mm
• Lead: 8mm
• Pitch: 2mm
• Starts: 4



Package Includes:

1 x Anti Backlash Nut for TR8*8 8mm 4 Starts Lead Screw
