The Skydroid H16 Pro Remote Controller

The Skydroid H16 Pro is a professional-grade remote controller designed for advanced drone operations. It combines powerful processing, exceptional durability, long-range transmission, and versatile connectivity to meet the demands of professional pilots and industrial users.

• Core Performance and Transmission :

Powered by the newest surging processor with an Android embedded system, the H16 Pro delivers smoother operation and intelligent functionality. It integrates advanced SDR technology and a super protocol stack, ensuring clearer image quality, lower latency, and superior anti-interference.

In terms of performance, the H16 Pro provides an ultra-long video transmission range of approximately 20–30 km, maintaining a stable link even in challenging environments. Operating on the 2.400–2.483 GHz frequency band, it supports 16 channels and utilizes the latest FHSS (Frequency Hopping Spread Spectrum) system for reliable and interference-free communication.

• Display and Durability :

The controller features a 7-inch FHD high-brightness IPS display with 1800 nits of brightness, allowing clear visibility even under direct sunlight. It supports 1080P high-definition digital image transmission, ensuring sharp and detailed visuals during flight.

Built to last, the H16 Pro is IP67-rated, providing protection against water, dust, and drops. Its construction includes weather-resistant silica gel, frosted rubber, stainless steel, and aviation-grade aluminum alloy, combining strength with a premium feel.

• Connectivity and Power :

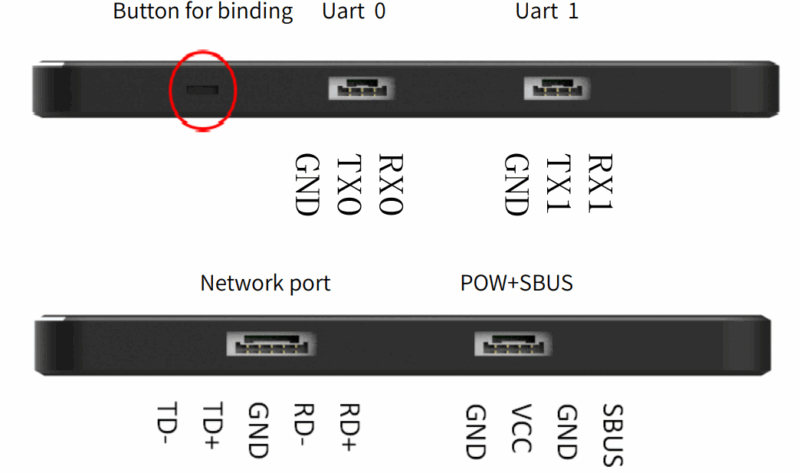

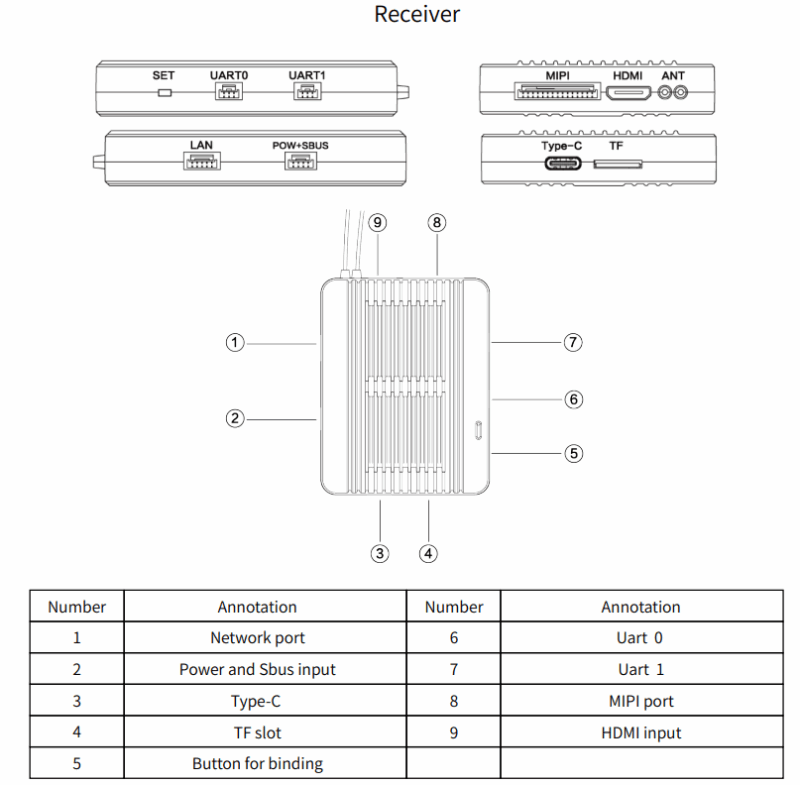

The H16 Pro offers a wide range of interfaces for enhanced flexibility. It supports HDMI, RJ45 (network port), dual serial passthrough transmission, and SBUS connections. On the ground-end, it includes Coach PPM input/output, a Type-C Android USB port, OTG interface, and a TF card slot for data expansion.

For internet access, users can connect through 5G Wi-Fi, the RJ45 port, or an internet card via the OTG port.Powering the system is a high-energy-density 20,000 mAh lithium-ion battery, which supports 18 W fast charging via Type-C.The endurance ranges from 6 to 20 hours, depending on usage conditions.

• Control and Software :

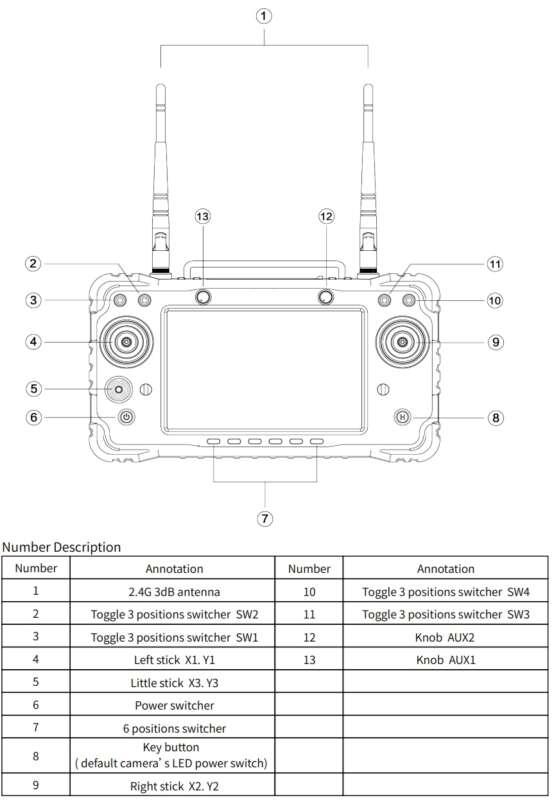

Equipped with an independent 2-dimensional gimbal joystick,the controller allows precise and smooth camera control. It also supports Master & Slave (Coach and Student) modes through its PPM ports,enabling flexible training and multi-operator setups.

The software system is fully open, allowing users to install and uninstall applications freely. Moreover, it is compatible with QGroundControl (QGC) and supports wireless RTSP video stream sharing, making it a versatile platform for professional drone operations.
